Farmall 140 Hi-Clear

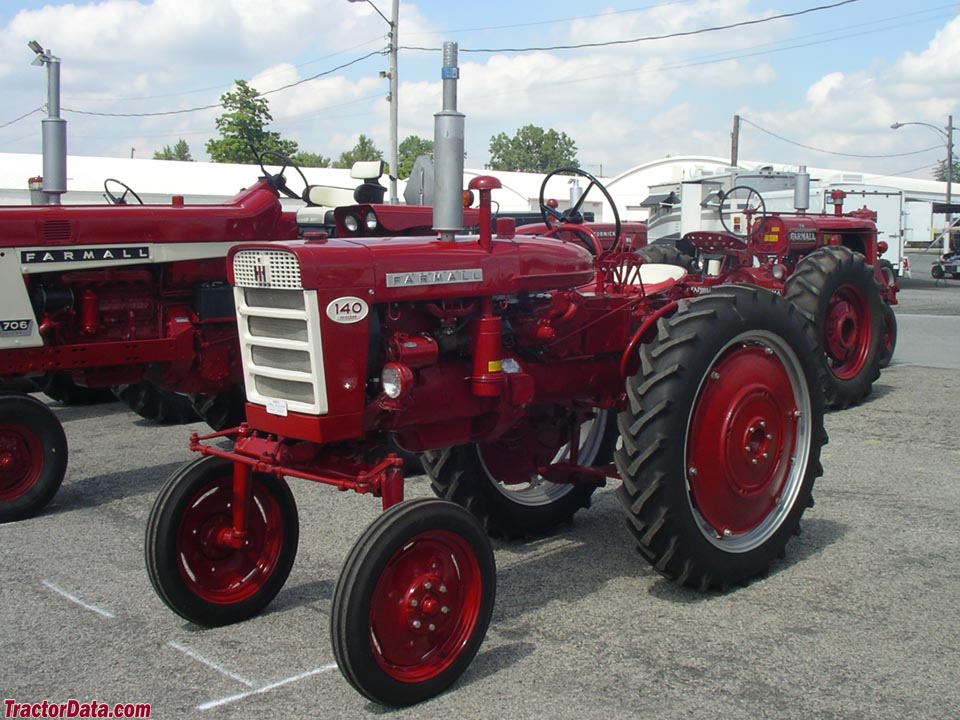

Farmall 140 Hi-Clear tractor photo
1958 - 1973
High-Clearance tractor
Production
ManufacturerFarmall (a part of International Harvester)
High-Clearance tractor
Variants
International 140IH version
Farmall 140utility
140 Hi-Clearhigh-crop
Farmall 140 Hi-Clear Engine
International Harvester 2.0L 4-cyl gasoline
Fuel tank11 gal
41.6 L
Engine details ...
Farmall 140 Hi-Clear Power
Drawbar (claimed)17 hp
12.7 kW
PTO (claimed)21 hp
15.7 kW
Plows1
Mechanical
Two-wheel drive
Steeringmanual
Differential contracting band brakes
Open operator station.
Tractor hitch
TypeIH Fast Hitch (one-point)
Power Take-off (PTO)
Rear PTOtransmission
Rear PTO Type540
Dimensions & Tires
Wheelbase71.625 inches
181 cm
Weight2800 lbs
1270 kg
Front tire4.00x19
Rear tire9.00x36
Full dimensions and tires ...
140 Hi-Clear Serial Number Location

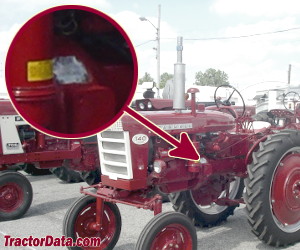

Farmall 140 Hi-Clear serial number location
Serial number plate on the left side of the tractor, on the clutch housing.
140 Hi-Clear Serial Numbers
1958501
19592011
19608082
196111168
196216637
196321181
196425387
196528408
196631285
196734818
196837352
196939906
197042300
197144424
197246605
197348507
197450720
197554273
197657773
197760839
197863111
197964544

FAQ: How to read a serial number table.
Electrical
Groundpositive (6V)
 negative (12V)
Charging systemgenerator (early)
 alternator (late)
Battery volts6 (early)
 12 (late)
