John Deere 6175R Transmission


John Deere 6175R tractor photo
2015 - 2021
6R Series
Row-Crop tractor
Series map:
6175R
6195R
175.0hp
195.0hp
Transmission options
16-speed partial power shift
20-speed partial power shift
24-speed eight-speed power shift
infinitely variable transmission
Transmission
TransmissionPowerQuad Plus
Typepartial power shift
Gears16 forward and reverse
Four power-shift gears (1-4) in four synchronized ranges (A-D). Push-button clutch for range shifts.
Speeds
With SRI 925 rear tires. Rear speeds are 4% faster than forward.

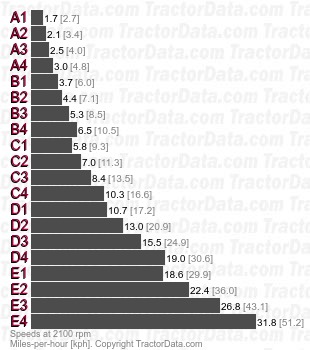

6175R PowerQuad Plus partial power shift speeds
Transmission
TransmissionAutoQuad Plus Eco
Typepartial power shift
Gears20 forward and reverse
Four power-shift gears (1-4) in Five synchronized ranges (A-E). Push-button clutch and automatic shift mode.
Speeds
With SRI 925 rear tires. Rear speeds are 4% faster than forward.
6175R AutoQuad Plus Eco partial power shift speeds
Transmission
TransmissionDirect Drive
Typeeight-speed power shift
Gears24 forward and reverse
Eight power-shift gears in three electronically-shifted ranges. Automatic and manual shifting modes available.
Speeds
With SRI 925 rear tires. Rear speeds are 4% faster than forward.

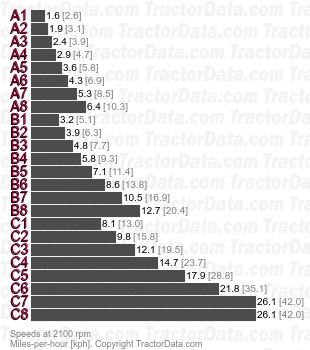

6175R Direct Drive eight-speed power shift speeds
Transmission
TransmissionAutoPowr IVT
Typeinfinitely variable transmission
Gearsinfinite forward and reverse
