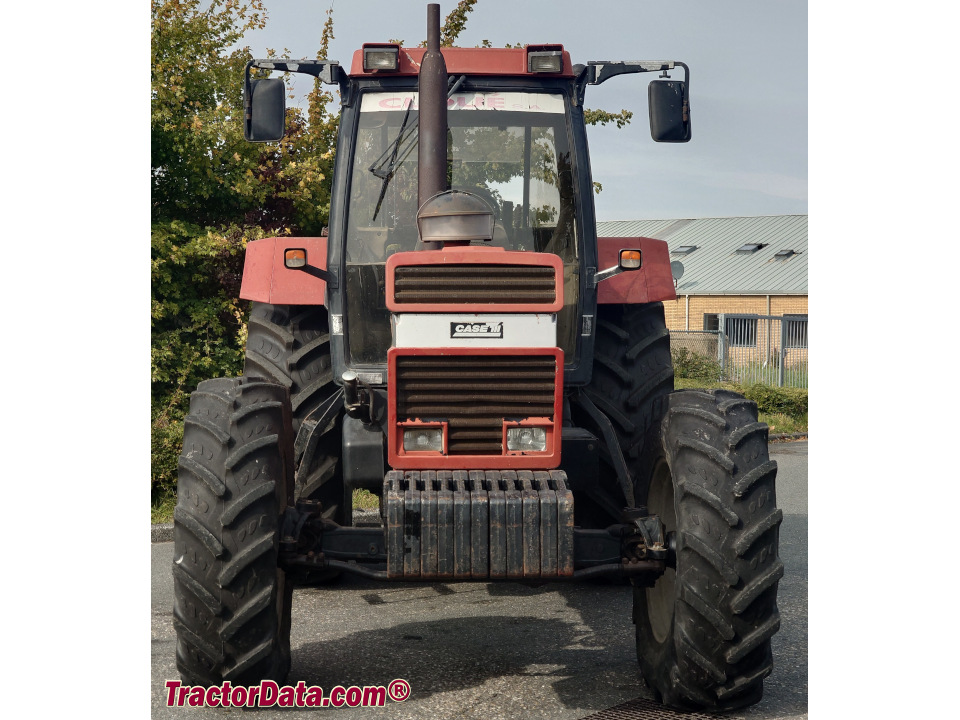

CaseIH 1255 XL
| | 1985 - 1994 |
| 55 Series | | Row-Crop tractor |
|
Series map:
1255 XL
1455 XL
93.2kw
108.1kw
| Production |
| Manufacturer | CaseIH
|
| Row-Crop tractor |
| Built in Neuss, Germany |
| CaseIH 1255 XL Power |
| Engine | 125 hp
93.2 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Steering | hydrostatic power
|
| Photos |
| No photos of the CaseIH 1255 XL are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Capacity |
| Fuel | 52.8 gal
199.8 L
|
| Front axle | 9.5 qts
9.0 L
|
| Hydraulics |
| Pressure | 2488 psi
171.5 bar
|
| Valves | up to 2
|
| Pump flow | 11 gpm
41.6 lpm
|
| Tractor hitch |
| Rear Type | III/II
|
| Control | position and draft control
|
| Rear lift | 10580 lbs
4799 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 55
|
| Battery volts | 12
|
| References |
 |
| 1255XL 1455XL published by CaseIH |
| 55 Series published by CaseIH |
