CaseIH 1255 XL Transmission


CaseIH 1255 XL tractor photo
1985 - 1994
55 Series
Row-Crop tractor
Series map:
1255 XL
1455 XL
93.2kw
108.1kw
Transmission options
12-speed fully synchronized
20-speed fully synchronized
Transmission
Typefully synchronized
Gears12 forward and 5 reverse
Oil capacity35.9 qts (2WD)
34.0 L
 42.3 qts (4WD)
40.0 L
Six gears (1-6) in two ranges (low/high), plus reverse range.
Speeds
1255 XL  fully synchronized speeds
Transmission
Typefully synchronized
Gears20 forward and 9 reverse
Six gears (1-6) in two ranges (low/high), plus reverse range with a underdrive for gears 1 and 2 in both ranges.

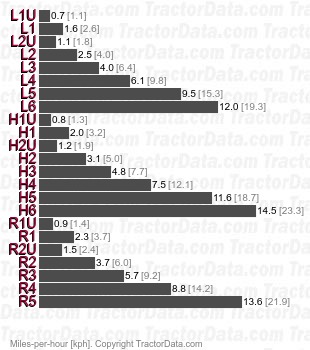

Speeds
1255 XL  fully synchronized speeds
