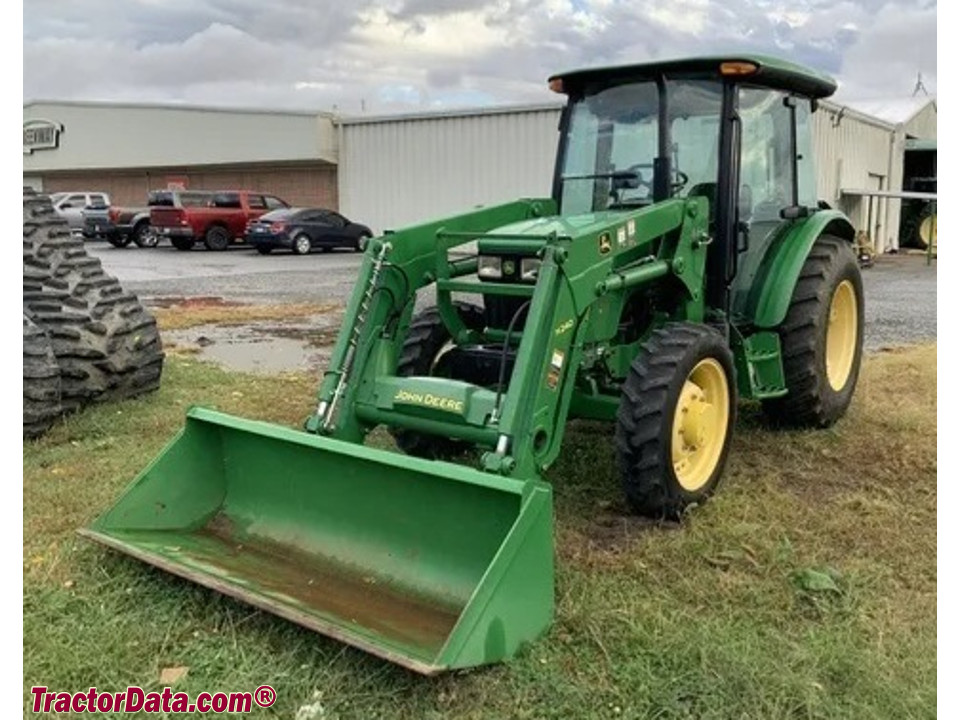

John Deere 5055E
| | 2008 - 2022 |
|
| 5E Series | | Utility tractor |
|
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| Built in Pune, Maharashtra, India |
| Original price | $26,685 (2014 9-speed ROPS )
|
| $36,045 (2014 12-speed Cab )
|
| John Deere 5055E Power |
| Engine (gross) | 55 hp
41.0 kW
|
| PTO (claimed) | 45 hp (ROPS)
33.6 kW
|
| | 41 hp (cab)
30.6 kW
|
| Mechanical |
| Four-wheel drive |
| Steering | hydrostatic power
|
| Hydraulic wet disc brakes |
| Two-post folding ROPS. Cab optional. |
| Hydraulics |
| Type | open center
|
| Rear valves | 1 or 2
|
| Mid valves | 2
|
| Pump flow | 11.4 gpm
43.1 lpm
|
| Total flow | 18.2 gpm
68.9 lpm
|
| Steering flow | 6.8 gpm
25.7 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | top link draft sensing
|
| Rear lift (at 24"/610mm) | 3192 lbs
1447 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | mechanical
|
| | electro-hydraulic (optional)
|
| Rear PTO Type | 540 (1.375)
|
| | 540/540E (1.375)
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Battery volts | 12
|
| References |
 |
| 5D - 5E Utility Tractors published in 2013, by John Deere* |
| 5D - 5E Utility Tractors published in 2014, by John Deere* |
| Operator's Manual 5045E, 5055E, 5065E and 5075E Tractors (OMSJ301048) published in 2014 |
| *Publication contains known errors. |
