John Deere 5045E Transmission


John Deere 5045E tractor photo
2008 - 2022
Model year
5E Series
Utility tractor
Series map:
5045E
5055E
45.0hp
55.0hp
Transmission
TransmissionSyncShuttle
Typepartially synchronized
Gears9 forward and 3 reverse
Clutchdry disc
Three gears (1-3) plus reverse (R) in three ranges (A-C). Gear shifts are synchronized using the foot clutch.

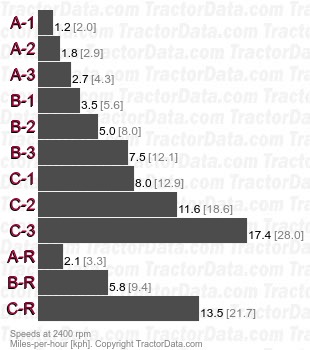

Speeds
With 16.9-28 rear tires.
5045E SyncShuttle partially synchronized speeds
