Ford 5000 Transmission


Ford 5000 tractor photo
1965 - 1976
Model year
Row-Crop tractor
Series map:
5000
70.0hp
Transmission options
8-speed
10-speed full power shift
16-speed partial power shift
Transmission
Transmissionsliding gear
Gears8 forward and 2 reverse
Oil capacity10.8 qts
10.2 L
Oil type
M-4864-A

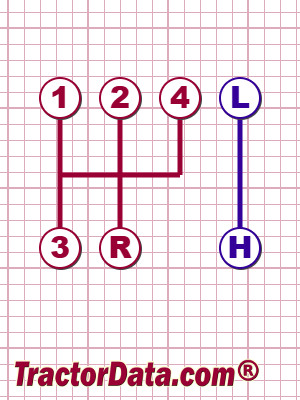

Four-speed gear selector on left, high-low range select lever on right. Tractor must be stopped before shifting.
Speeds
5000 sliding gear  speeds
Transmission
TransmissionSelect-O-Speed
Typefull power shift
Gears10 forward and 2 reverse
Oil capacity11.8 qts
11.2 L
Oil type
M2C41
Transmission can shifted between gears while moving.
Speeds

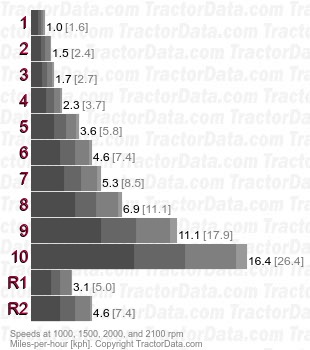

5000 Select-O-Speed full power shift speeds
Transmission
TransmissionDual Power
Typepartial power shift
Gears16 forward and 4 reverse
Dual Power adds a power shift underdrive to the basic 8-speed transmission.

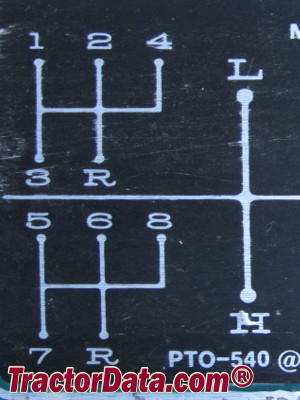

Shift Pattern
Ford 5000 transmission controls
