Ford 5000 Tests


Ford 5000 tractor photo
1965 - 1976
Model year
Row-Crop tractor
Series map:
5000
70.0hp
Tractor Tests
NTTL 996: diesel 8-speed 2WD
NTTL 997: gasoline Select-O-Speed 2WD
NTTL 998: gasoline 8-speed 2WD
NTTL 1000: diesel Select-O-Speed 2WD
Nebraska Tractor Test 996

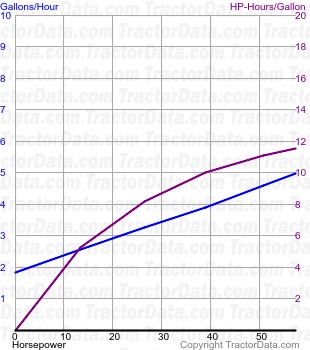

5000 fuel use from test 996
Nebraska Tractor Test 996
Diesel 8-speed 2WD
October 30, 1965 - November 25, 1968
Link: Nebraska Tractor Test 996 file
PTO performance
Power at rated engine speed67.23 hp
50.1 kW
Fuel use4.3 gal/hour
16.3 l/hour
Power at rated PTO speed64.16 hp
47.8 kW
Fuel use4.0 gal/hour
15.1 l/hour
Drawbar performance
Max power59.92 hp
44.7 kW
Fuel use4.5 gal/hour
17.0 l/hour
Gear 4 used for power test.
Max pull7073 lbs
3208 kg
Gear 4 used for pull test.
Nebraska Tractor Test 997

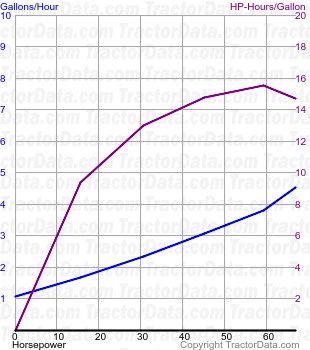

5000 fuel use from test 997
Nebraska Tractor Test 997
Gasoline Select-O-Speed 2WD
November 7 - 25, 1968
Link: Nebraska Tractor Test 997 file
PTO performance
Power at rated engine speed65.54 hp
48.9 kW
Fuel use5.7 gal/hour
21.6 l/hour
Power at rated PTO speed61.97 hp
46.2 kW
Fuel use5.3 gal/hour
20.1 l/hour
Drawbar performance
Max power54.53 hp
40.7 kW
Fuel use5.5 gal/hour
20.8 l/hour
Gear 6 used for power test.
Max pull7138 lbs
3237 kg
Gear 4 used for pull test.
Nebraska Tractor Test 998

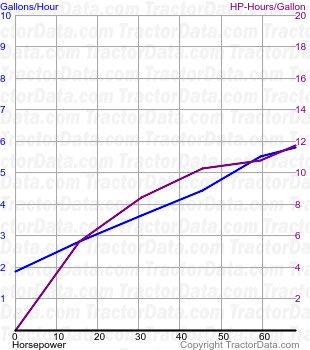

5000 fuel use from test 998
Nebraska Tractor Test 998
Gasoline 8-speed 2WD
November 7 - 25, 1968
Link: Nebraska Tractor Test 998 file
PTO performance
Power at rated engine speed67.31 hp
50.2 kW
Fuel use5.8 gal/hour
22.0 l/hour
Power at rated PTO speed63.73 hp
47.5 kW
Fuel use5.4 gal/hour
20.4 l/hour
Drawbar performance
Max power57.87 hp
43.2 kW
Fuel use6.0 gal/hour
22.7 l/hour
Gear 4 used for power test.
Max pull7247 lbs
3287 kg
Gear 2 used for pull test.
Nebraska Tractor Test 1000

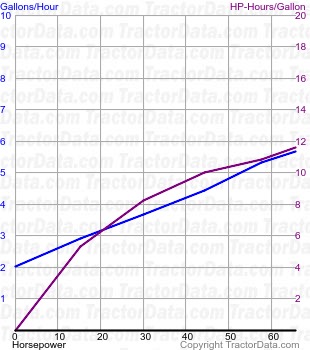

5000 fuel use from test 1000
Nebraska Tractor Test 1000
Diesel Select-O-Speed 2WD
October 30 - December 2, 1968
Link: Nebraska Tractor Test 1000 file
PTO performance
Power at rated engine speed66.49 hp
49.6 kW
Fuel use4.5 gal/hour
17.0 l/hour
Power at rated PTO speed63.94 hp
47.7 kW
Fuel use4.2 gal/hour
15.9 l/hour
Drawbar performance
Max power56.53 hp
42.2 kW
Fuel use4.5 gal/hour
17.0 l/hour
Gear 6 used for power test.
Max pull7200 lbs
3265 kg
Gear 4 used for pull test.
