John Deere 5101EN

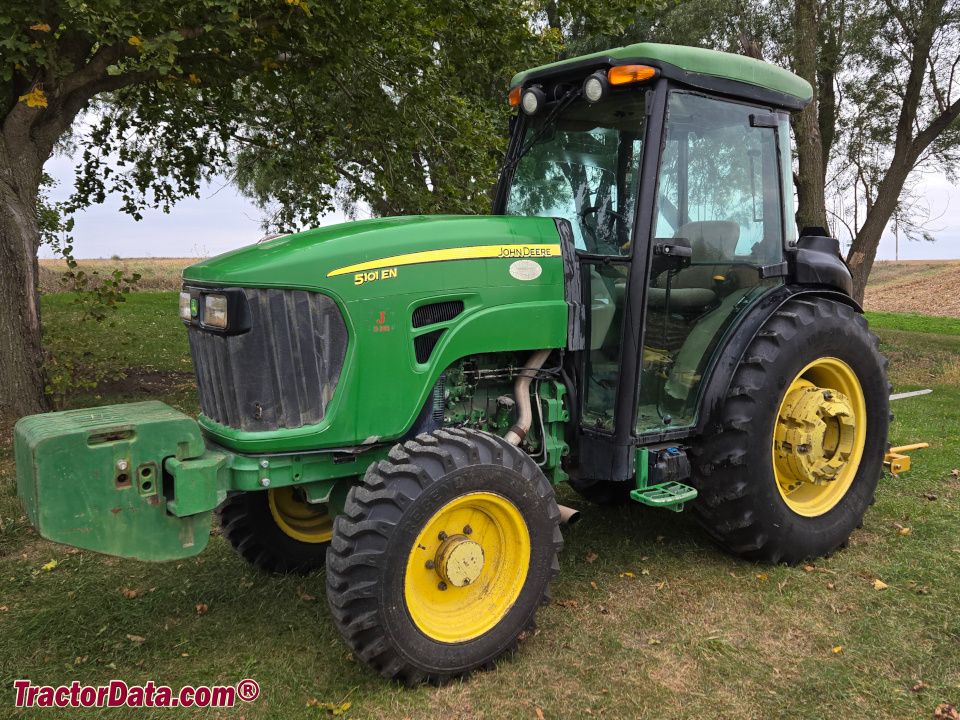

John Deere 5101EN tractor photo
2008 - 2022
Model year
5E Limited Series
Orchard/Vineyard tractor
Series map:
5093EN
5101EN
93.0hp
101.0hp
Production
ManufacturerJohn Deere
Orchard/Vineyard tractor
Variants
5101Eutility chassis
5101ENnarrow chassis
John Deere 5101EN Engine
John Deere 4.5L 4-cyl diesel
Engine details ...
John Deere 5101EN Transmissions
12-speed partially synchronized power shuttle
24-speed two-speed power shift
Transmission details ...
John Deere 5101EN Power
Engine (gross)101 hp
75.3 kW
PTO (claimed)86 hp
64.1 kW
Mechanical
Two- or four-wheel drive
Final drivesplanetary
Steeringhydrostatic power
Hydraulic wet disc brakes
Two-post foldable ROPS. Cab optional.
Photos
No photos of the John Deere 5101EN are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel19 gal
71.9 L
Hydraulic system11.5 gal (12-speed)
43.5 L
 12 gal (24-speed)
45.4 L
Hydraulics
Typeopen center
Capacity11.5 gal (12-speed)
43.5 L
 12 gal (24-speed)
45.4 L
Pressure2878 psi
198.4 bar
Valves2 to 5
Pump flow18.4 gpm
69.6 lpm
Total flow25 gpm
94.6 lpm
Steering flow6.6 gpm
25.0 lpm
Tractor hitch
Rear TypeII/I
Controlposition control
Rear lift (at 24"/610mm)3374 lbs
1530 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear PTO Type540/540E (1.375)
Engine RPM540@2400
 540E@1700
Dimensions & Tires
2WD Wheelbase85.7 inches
217 cm
4WD Wheelbase81.7 inches
207 cm
Weight5483 to 5837 pounds
Full dimensions and tires ...
5101EN Serial Numbers
Location:Tractor frame, front right side.
Electrical
Groundnegative
Charging systemalternator
Charging amps70 (ROPS)
 90 (cab)
 120 (optional)
Battery CCA750
Battery volts12
References
5101EN references literature
Specialty Tractors published in 2012, by John Deere
Specialty Tractors published in 2014, by John Deere
