| | 2008 - 2022 |
|
| 5E Limited Series | | Orchard/Vineyard tractor |
|
Series map:
5083EN
5093EN
83.0hp
93.0hp
| Transmission options |
| 12-speed partially synchronized power shuttle |
| 24-speed two-speed power shift |
| Transmission |
| Transmission | PowrReverser
|
| Type | partially synchronized power shuttle
|
| Gears | 12 forward and reverse
|
| Clutch | hydraulic wet disc
|
| Oil capacity | 46 qts
43.5 L
|
| Four gears (1-4) in the ranges (A-C) with left hand power shuttle lever. Shifts between gears are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift gears. |

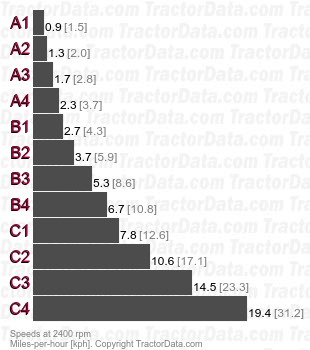

| Speeds |
| With 12.4-24 R1 rear tires. Reverse speeds about 10% faster than forward speeds. |
|
| Transmission |
| Transmission | PowrReverser Hi/Lo
|
| Type | two-speed power shift
|
| Gears | 24 forward and 12 reverse
|
| Clutch | hydraulic wet disc
|
| Oil capacity | 48 qts
45.4 L
|
| The Hi/Lo option adds a two-speed push button power shift to the PowrReverser transmission. |

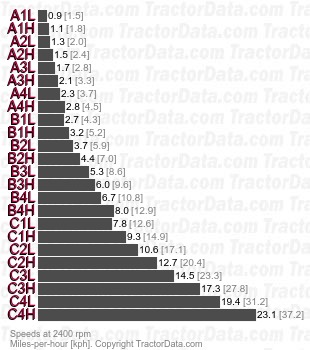

| Speeds |
| With 12.4-24 R1 rear tires. |
|
