John Deere 5083EN Engine


John Deere 5083EN tractor photo
2008 - 2022
Model year
5E Limited Series
Orchard/Vineyard tractor
Series map:
5083EN
5093EN
83.0hp
93.0hp
Engine Detail
John Deere 4
turbocharged diesel
4-cylinder
liquid-cooled inline
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsTier 3
Rated Power (gross)83 hp
61.9 kW
Fuel systemdirect injection
Air cleanerdual element dry
Compression19:1
Rated RPM2400
Idle RPM850-2600
Operating RPM1000-2400
Firing order1-3-4-2
Starterelectric
Starter volts12
Coolant capacity12 qts
11.4 L
Engine Oil

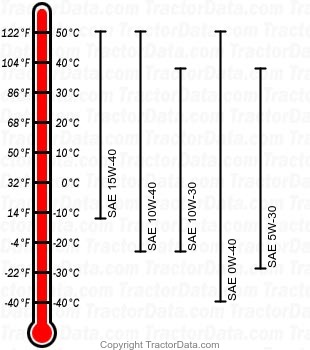

5083EN diesel engine oil chart
Oil capacity9 qts
8.5 L
Oil change250 h
 500 h (JD PLUS-50 oil)
