John Deere 5101EN Transmission


John Deere 5101EN tractor photo
2008 - 2022
Model year
5E Limited Series
Orchard/Vineyard tractor
Series map:
5093EN
5101EN
91.0hp
99.0hp
Transmission options
12-speed partially synchronized power shuttle
24-speed two-speed power shift
Transmission
TransmissionPowrReverser
Typepartially synchronized power shuttle
Gears12 forward and reverse
Clutchhydraulic wet disc
Oil capacity46 qts
43.5 L
Four gears (1-4) in the ranges (A-C) with left hand power shuttle lever. Shifts between gears are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift gears.
Speeds
With 12.4-24 R1 rear tires. Reverse speeds about 10% faster than forward speeds.

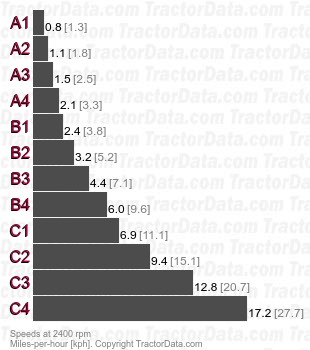

5101EN PowrReverser partially synchronized power shuttle speeds
Transmission
TransmissionPowrReverser Hi/Lo
Typetwo-speed power shift
Gears24 forward and reverse
Clutchhydraulic wet disc
Oil capacity48 qts
45.4 L
The Hi/Lo option adds a two-speed push button power shift to the PowrReverser transmission.
Speeds
With 12.4-24 R1 rear tires. Reverse speeds about 10% faster than forward speeds.

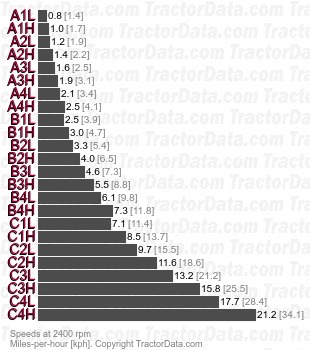

5101EN PowrReverser Hi/Lo two-speed power shift speeds
