Tractors > CaseIH > Magnum 280

CaseIH Magnum 280 Tests



CaseIH Magnum 280 tractor photo
2014 - 2025
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 250
Magnum 280
Magnum 310
250.0hp
280.0hp
310.0hp
OCED Tractor Test 2123

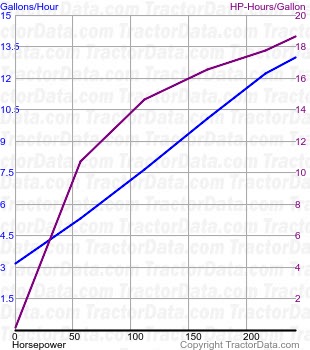

Magnum 280 fuel use from test 986
OCED Tractor Test 2123
Diesel 19-speed 4WD
September 11 - 17, 2015
Link: OCED Tractor Test 2123 file
PTO performance
Max power296.56 hp
221.1 kW
Fuel use15.1 gal/hour
57.2 l/hour
Power at rated engine speed242.08 hp
180.5 kW
Fuel use13.0 gal/hour
49.2 l/hour
Power at rated PTO speed296.56 hp
221.1 kW
Fuel use15.1 gal/hour
57.2 l/hour
Drawbar performance
Max power213.10 hp
158.9 kW
Fuel use13.0 gal/hour
49.2 l/hour
Gear 8 used for power test.
Max pull26131 lbs
11853 kg
Gear 4 used for pull test.
