Tractors > CaseIH > Magnum 280

CaseIH Magnum 280 Engine



CaseIH Magnum 280 tractor photo
2014 - 2025
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 250
Magnum 280
Magnum 310
250.0hp
280.0hp
310.0hp
Engine Detail
FPT
wastegate turbocharger diesel
6-cylinder 24-valve
liquid-cooled
Displacement531 ci
8.7 L
Bore/Stroke4.606x5.315 inches
117 x 135 mm
EmissionsTier IV
Emission controlselective catalytic reduction (SCR)
Rated Power (gross)280 hp
208.8 kW
Maximum Power (gross)315 hp
234.9 kW
 350 hp (boost)
261.0 kW
Fuel systemelectronic high pressure common rail direct injection
Cooling systemBorgWarner Visctronic  fan
Rated RPM2000
Starterelectric
Starter volts12

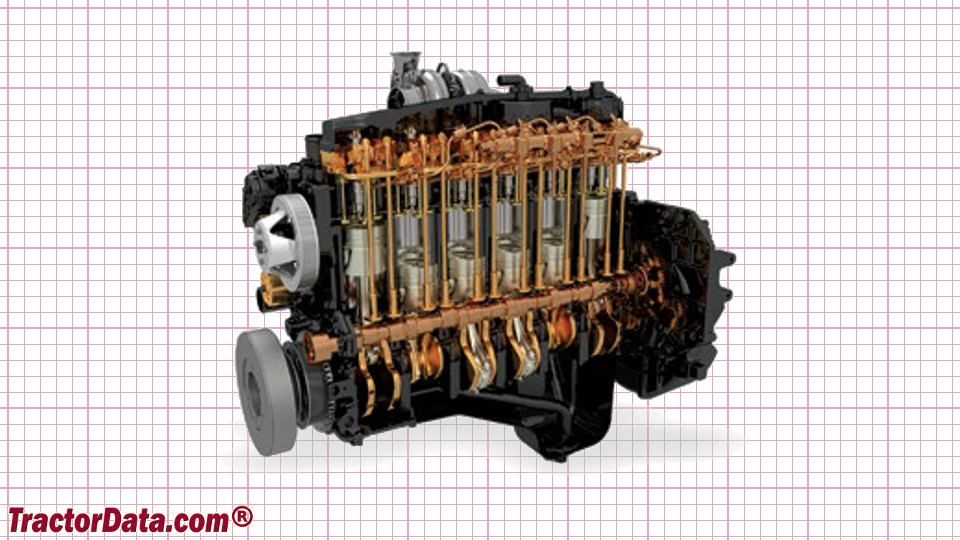

CaseIH Magnum 280 Engine
CaseIH Magnum 280 engine image
