Massey Ferguson 390
|
|
| Production | |
| Manufacturer | Massey Ferguson |
| Utility tractor | |
| Built in Coventry, England | |
| Original price | $23,500 (1988 2WD ) |
| $29,200 (1988 4WD ) | |
| Massey Ferguson 390 Engine | |
| Perkins 4.1L 4-cyl diesel | |
| Fuel tank | 28.5 gal 107.9 L |
 Engine details ... | |
| Massey Ferguson 390 Transmissions | |
| 12-speed synchromesh | |
| 12-speed two-speed power shift | |
 Transmission details ... |
| Massey Ferguson 390 Power | |
| Engine | 76 hp 56.7 kW |
| PTO (claimed) | 69 hp 51.5 kW |
| Drawbar (tested) | 55.5 hp 41.4 kW |
| PTO (tested) | 67.3 hp 50.2 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Power steering | |
| Wet disc brakes | |
| Two-post ROPS. Canopy optional. |
| Photos | |
| No photos of the Massey Ferguson 390 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Hydraulics | |
| Type | open center |
| Pressure | 3000 psi 206.8 bar |
| Pump flow | 4.4 gpm (linkage pump) 16.7 lpm |
| 9.5 gpm (aux. pump) 36.0 lpm | |
| Total flow | 13.9 gpm 52.6 lpm |
| 16.8 gpmOptOptional 63.6 lpm | |
| Tractor hitch | |
| Rear Type | II |
| Control | position and draft control |
| Rear lift | 4250 lbs*Capacity through full lift range 1927 kg |
| Rear lift (at ends) | 5701 lbs (fixed-end)*Capacity with links horizontal 2585 kg |
| 6744 lbs (fixed-end with assist ram)*Capacity with links horizontal 3059 kg | |
| 5410 lbs (wrist-action)*Capacity with links horizontal 2453 kg | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| 540/1000 (1.375) | |
| Dimensions & Tires | |
| 2WD Wheelbase | 84.1 inches 213 cm |
| 4WD Wheelbase | 92.5 inches 234 cm |
| Weight | 6036 to 7266 pounds |
| Front tire | 6.50-16 |
| Rear tire | 16.9-24 (2WD) |
 Full dimensions and tires ... | |
| 390 Serial Number Location | |
 | |
| Serial number plate on the right side of the tractor, near the brake pedals. |
| 390 Serial Numbers | |
| 1986 | U01001 |
| 1987 | V01001 |
| 1988 | N01001 |
| 1989 | P01001 |
| 1990 | R01001 |
| 1991 | S01001 |
| 1992 | A01001 |
| 1993 | B01001 |
| 1994 | C01001 |
| 1995 | D01001 |
| 1996 | E01001 |
| 1997 | F01001 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 45 |
| Battery CCA | 420 (2x) |
| 540 (1x) | |
| Battery volts | 12 |

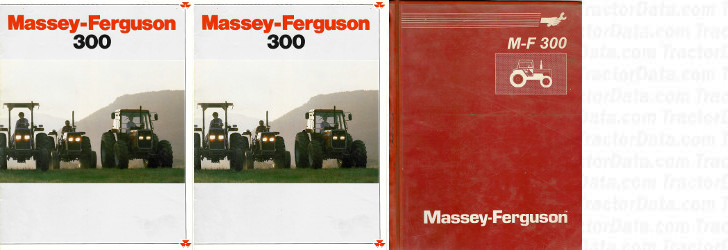

| References | |
 | |
| 300 published in 1986, by Massey Ferguson | |
| 300 published in 1986, by Massey Ferguson | |
| 300 Series Tractors Data Book published in 1992, by Massey Ferguson | |
| M-F 300 Series Tractor Workshop Manual (1449 244M1) published in 1991 |
