| 1996 - 2001 |
|
9000 Series | Four-wheel Drive (4WD) tractor |
|
Transmission options |
12-speed partially synchronized |
24-speed partial power shift |
12-speed full power shift |
Transmission |
Transmission | John Deere Syncro
|
Type | partially synchronized
|
Gears | 12 forward and 3 reverse
|
Oil capacity | 136.3 qts 129.0 L
|
  | 138.4 qts (with PTO) 131.0 L
|
Three speeds (1-3 and reverse) in four ranges (A-D). Synchronized shifting between speeds using the clutch. Tractor must be stopped, and clutch used, to shift ranges. Reverse is not available in the highest (D) range. |
Speeds |
With 20.8R42 tires. |
|
Transmission |
Transmission | John Deere PowrSync
|
Type | partial power shift
|
Gears | 24 forward and 6 reverse
|
Oil capacity | 136.3 qts 129.0 L
|
  | 138.4 qts (with PTO) 131.0 L
|
Three speeds (1, 2, 3 and reverse) in four ranges (A-D) plus high-low power shift. Speeds and ranges may be shifted on the move, using the clutch. High-low power shift for each speed using lever. |
Speeds |
With 20.8R42 tires. |
|
Transmission |
Transmission | John Deere PowerShift
|
Type | full power shift
|
Gears | 12 forward and 2 reverse
|
Oil capacity | 56 qts 53.0 L
|
  | 54 qts (no PTO) 51.1 L
|
  | 108 qts (axles) 102.2 L
|

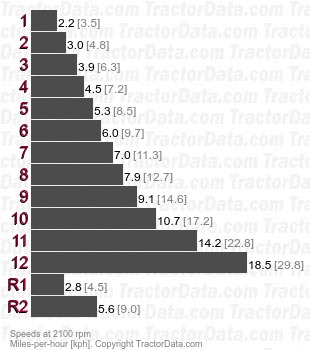

Speeds |
With 20.8R42 tires. |
|
