| | 2014 - 2025 |
|
| Puma Series | | Row-Crop tractor |
|
Series map:
Puma 220
Puma 240
220.0hp
240.0hp
| Engine Detail |
| FPT |
| turbocharged with air-to-air aftercooling diesel |
| 6-cylinder 24-valve |
| liquid-cooled inline |
| Displacement | 410.6 ci
6.7 L
|
| Bore/Stroke | 4.094x5.197 inches
104 x 132 mm
|
| Emissions | Tier 4
|
| Emission control | selective catalytic reduction (SCR)
|
| Power | 240 hp
179.0 kW
|
| Maximum Power | 270 hp
201.3 kW
|
| Fuel system | electronic common rail
|
| Cooling system | viscous fan
|
| | reversible OptOptional
|
| Rated RPM | 2200
|
| Starter | electric
|
| Starter volts | 12
|

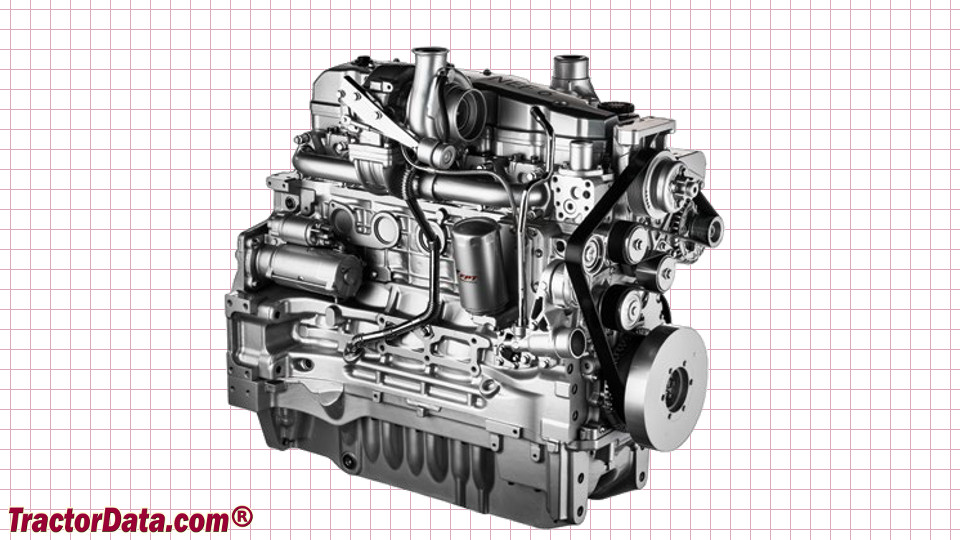

| CaseIH Puma 240 Engine |
 |
