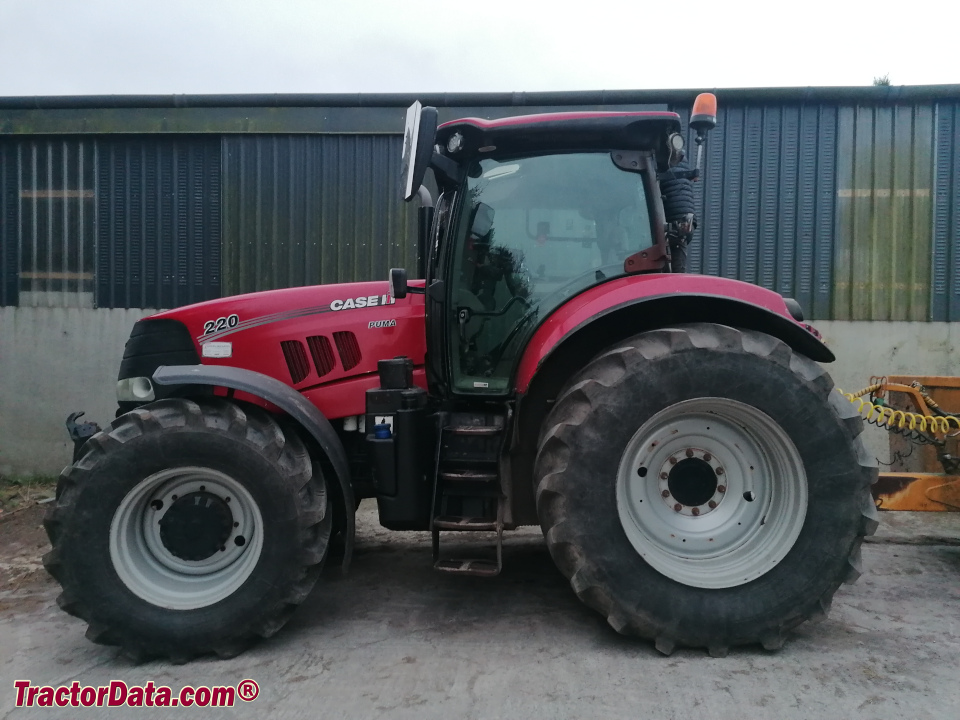

CaseIH Puma 220
| | 2014 - 2025 |
|
| Puma Series | | Row-Crop tractor |
|
| Production |
| Manufacturer | CaseIH
|
| Row-Crop tractor |
| Built in Basildon, England |
| Original price | $207,893 (2015 CVT )
|
| $195,731 (2015 power shift )
|
| CaseIH Puma 220 Power |
| Engine | 220 hp
164.1 kW
|
| PTO (claimed) | 190 hp
141.7 kW
|
| Drawbar (tested) | 156.5 hp
116.7 kW
|
| PTO (tested) | 209.6 hp
156.3 kW
|
 Performance test details ... |
| Mechanical |
| Four-wheel drive |
| Power steering |
| Wet disc brakes |
| Trailer brakes | hydraulic OptOptional
|
| | pneumatic OptOptional
|
| Cab standard with air-conditioning. |
| Photos |
| No photos of the CaseIH Puma 220 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Hydraulics |
| Type | closed center pressure flow compensating
|
| Valves | 3 to 5
|
| Pump flow | 30 gpm
113.6 lpm
|
| | 39.6 gpmOptOptional
149.9 lpm
|
| Total flow | 47 gpm
177.9 lpm
|
| | 56.6 gpmOptOptional
214.2 lpm
|
| Steering flow | 17 gpm
64.3 lpm
|
| Tractor hitch |
| Rear Type | II/IIIN
|
| Rear lift | 12787 lbs
5800 kg
|
| | 15000 lbsOptOptional
6804 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000 (1.375)
|
| | 1000/1000E (1.75)
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 150
|
| Battery volts | 12
|
| References |
 |
| Puma 185-240 Tractors published in 2021, by CaseIH |
| Puma Series Tractors published in 2017, by CaseIH |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on July 6, 2022 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...
Full dimensions and tires ...
