Tractors > CaseIH > Puma 220

CaseIH Puma 220 Engine



CaseIH Puma 220 tractor photo
2014 - 2025
Model year
Puma Series
Row-Crop tractor
Series map:
Puma 200
Puma 220
Puma 240
200.0hp
220.0hp
240.0hp
Engine Detail
FPT
turbocharged with air-to-air aftercooling diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement410.6 ci
6.7 L
Bore/Stroke4.094x5.197 inches
104 x 132 mm
EmissionsTier 4
Emission controlselective catalytic reduction (SCR)
Power220 hp
164.1 kW
Maximum Power260 hp
193.9 kW
Fuel systemelectronic common rail
Cooling systemviscous fan
 reversible OptOptional
Rated RPM2200
Starterelectric
Starter volts12
CaseIH Puma 220 Engine

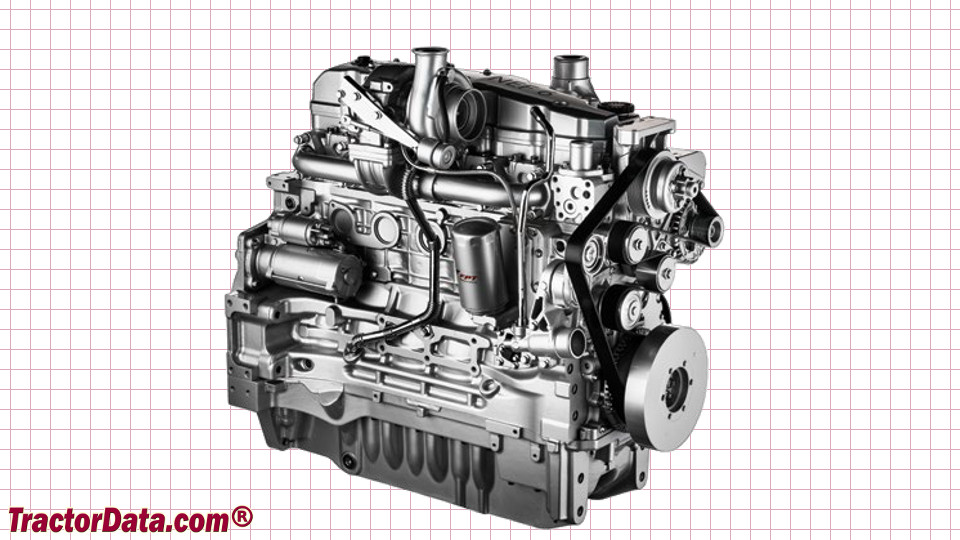

CaseIH Puma 220 engine image
