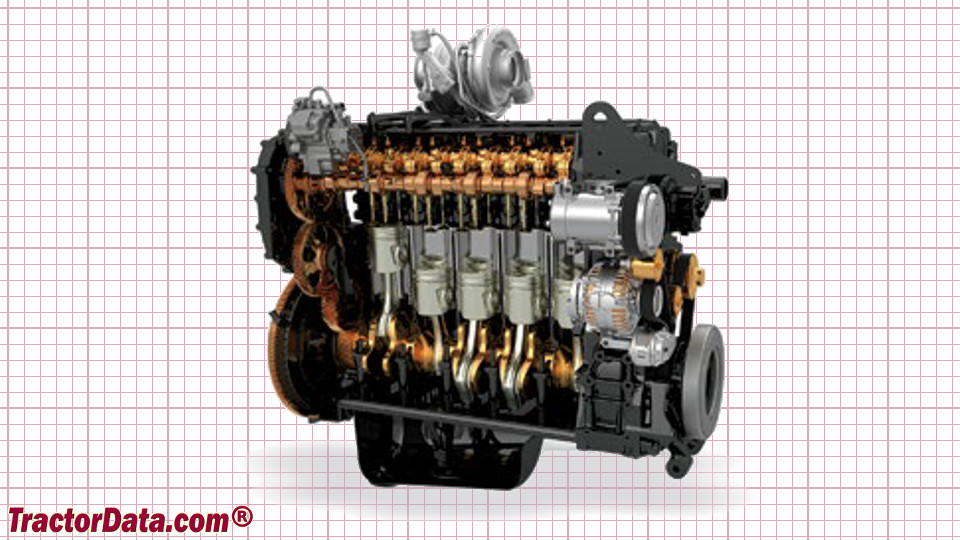

CaseIH Magnum 180 Engine
|
|
| Engine Detail | |
| FPT | |
| wastegate turbocharged air-to-air intercooled diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled | |
| Displacement | 410.6 ci 6.7 L |
| Bore/Stroke | 4.095x5.20 inches 104 x 132 mm |
| Emissions | Tier 4 |
| Emission control | selective catalytic reduction (SCR) |
| Rated Power (gross) | 180 hp 134.2 kW |
| Maximum Power (gross) | 225 hp 167.8 kW |
| Fuel system | electronic high pressure common rail direct injection |
| Cooling system | viscous fan |
| Rated RPM | 2200 |
| Starter | electric |
| Starter volts | 12 |
| CaseIH Magnum 180 Engine | |
 |
