New Holland T7.185
|
|
| Production | |
| Manufacturer | New Holland (a part of CNH) |
| Row-Crop tractor | |
| Built in Basildon, England | |
| New Holland T7.185 Engine | |
| FPT 6.7L 6-cyl diesel | |
| Fuel tank | 87 gal 329.3 L |
| Exhaust fluid (DEF) | 13 gal 49.2 L |
 Engine details ... | |
| New Holland T7.185 Transmissions | |
| 19-speed 6-speed power shift | |
| 19-speed full power shift | |
| continuously-variable transmission (CVT) | |
 Transmission details ... |
| New Holland T7.185 Power | |
| Engine (gross) | 140 hp 104.4 kW |
| Engine (max) | 188 hp 140.2 kW |
| PTO (claimed) | 115 hp 85.8 kW |
| Drawbar (tested) | 109.4 hp 81.6 kW |
| PTO (tested) | 139.1 hp 103.7 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Steering | hydrostatic power |
| Brakes | hydraulic wet disc |
| engine exhaust brake OptOptional | |
| Trailer brakes | hydraulic OptOptional |
| pneumatic OptOptional | |
| Horizon cab standard with air-conditioning. Intellisteer optional | |
| Photos | |
 | |

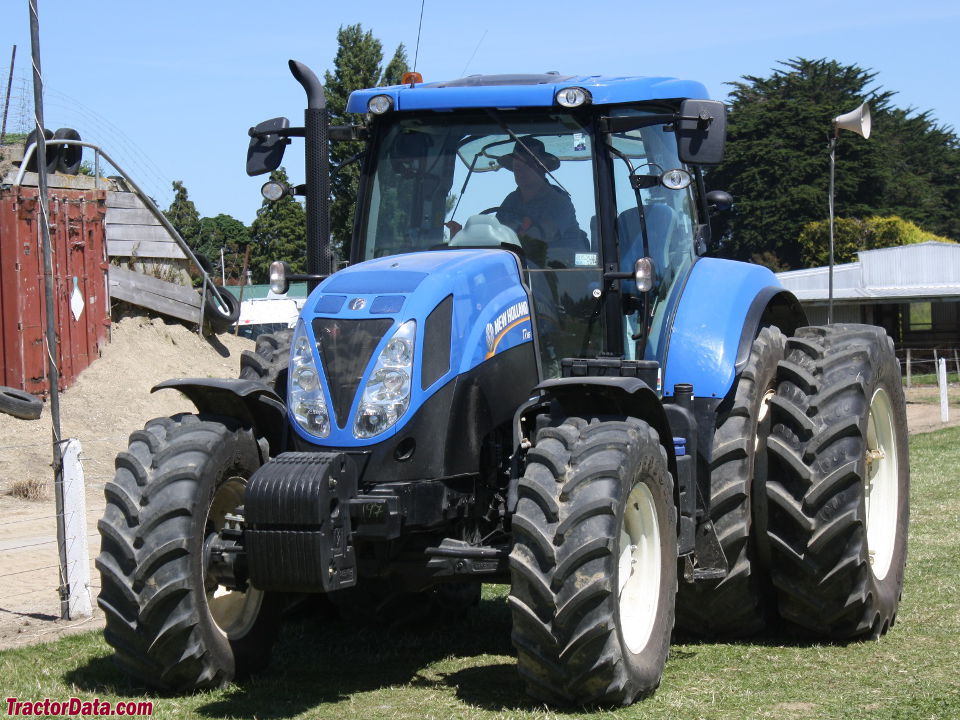

 New Holland T7.185 photos... | |
| Hydraulics | |
| Type | closed center load sensing |
| Rear valves | 3 to 5 |
| Mid valves | 3 (optional) |
| Pump flow | 29.8 gpm 112.8 lpm |
| 33 gpm (optional) 124.9 lpm | |
| Steering flow | 14.8 gpm 56.0 lpm |
| Tractor hitch | |
| Rear Type | II |
| Control | electronic draft control |
| Rear lift (at ends) | 12185 lbs 5527 kg |
| Rear lift (at 24"/610mm) | 11821 lbs 5362 kg |
| Rear Arms | flex link ends |
| Front Hitch | optional |
| Front lift (at ends) | 7866 lbs 3568 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 |
| Front PTO | independent OptOptional |
| Front PTO Type | 1000 |
| Dimensions & Tires | |
| Wheelbase | 107.6 inches 273 cm |
| 109.8 inches (Terraglide) 278 cm | |
| 113.3 inches (SuperSteer) 287 cm | |
| Weight | 12787 to 13448 pounds |
| Rear tire | 18.4R38 |
 Full dimensions and tires ... | |
| New Holland T7.185 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 120 |
| 150 OptOptional | |
| 200 OptOptional | |
| Battery CCA | 960 |
| Battery volts | 12 |
| Battery AH | 132 |
