John Deere 6150RH


John Deere 6150RH tractor photo
2013 - 2014
6R Series
High-Clearance tractor
Series map:
6150RH
150.0hp
Production
ManufacturerJohn Deere
High-Clearance tractor
Original price was $145,664 in 2014
Variants
6150Rrow-crop
6150RHhigh-crop
John Deere 6150RH Engine
John Deere 6.8L 6-cyl diesel
Fuel tank80.5 gal
304.7 L
Engine details ...
John Deere 6150RH Power
Engine (gross)150 hp
111.9 kW
Engine (max)165 hp
123.0 kW
PTO (claimed)120 hp
89.5 kW
Mechanical
Four-wheel drive
Cab standard with air-conditioning.
Photos
No photos of the John Deere 6150RH are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed center pressure and flow compensated
Pump flow30.1 gpm
113.9 lpm
SCV flow26.4 gpm
99.9 lpm
Tractor hitch
Rear TypeIII/IIIN
Rear lift9193 lbs
4169 kg
DrawbarCat. 2
Dimensions & Tires
Front tire320/90R46
Rear tire18.4R38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps120
Battery volts12
References

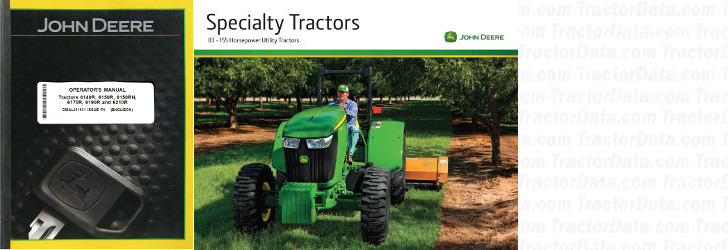

6150RH references literature
Operator's Manual Tractors 6140R, 6150R, 6150RH, 6170R, 6190R and 6120R (OMAL211531) published in 2014
Specialty Tractors published in 2014, by John Deere
