John Deere 6150R


John Deere 6150R tractor photo
2013 - 2014
6R Series
Row-Crop tractor
Series map:
6140R
6150R
140.0hp
150.0hp
Production
ManufacturerJohn Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA
Original price$125,570 (2014 16-speed Basic Cab 2WD )
$159,249 (2014 IVT Deluxe Cab 4WD )
Variants
6150Rrow-crop
6150RHhigh-crop
John Deere 6150R Engine
John Deere 6.8L 6-cyl diesel
Fuel tank94 gal
355.8 L
Engine details ...
John Deere 6150R Transmissions
16-speed four-speed power shift
20-speed
infinitely variable transmission
24-speed eight-speed power shift
Transmission details ...
John Deere 6150R Power
Engine (gross)150 hp
111.9 kW
Engine (max)165 hp
123.0 kW
PTO (claimed)120 hp
89.5 kW
Drawbar (tested)116.90 hp
87.2 kW
PTO (tested)144.68 hp
107.9 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drivesinboard planetary
Power steering
Brakeshydraulic wet disc
 optional TLS front-axle brakes
Cab standard with air-conditioning.
Hydraulics
Typeclosed center pressure and flow compensated
Pressure2900 psi
200.0 bar
Valves3 to 4
Pump flow30.1 gpm
113.9 lpm
SCV flow26.4 gpm
99.9 lpm
Tractor hitch
Rear TypeIII/IIIN
Rear lift9193 lbs
4169 kg
DrawbarCat. 2
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000 (1.375)
Engine RPM540@1987
 540E@1753
 1000@2010
Front PTOindependent OptOptional
Front PTO Type1000
Engine RPM1000@1969
Dimensions & Tires
2WD Wheelbase117.5 inches
298 cm
4WD Wheelbase108.9 inches
276 cm
Weight14975 lbs
6792 kg
Front tire11.00-20
Rear tire480/80R46 (2WD)
Full dimensions and tires ...

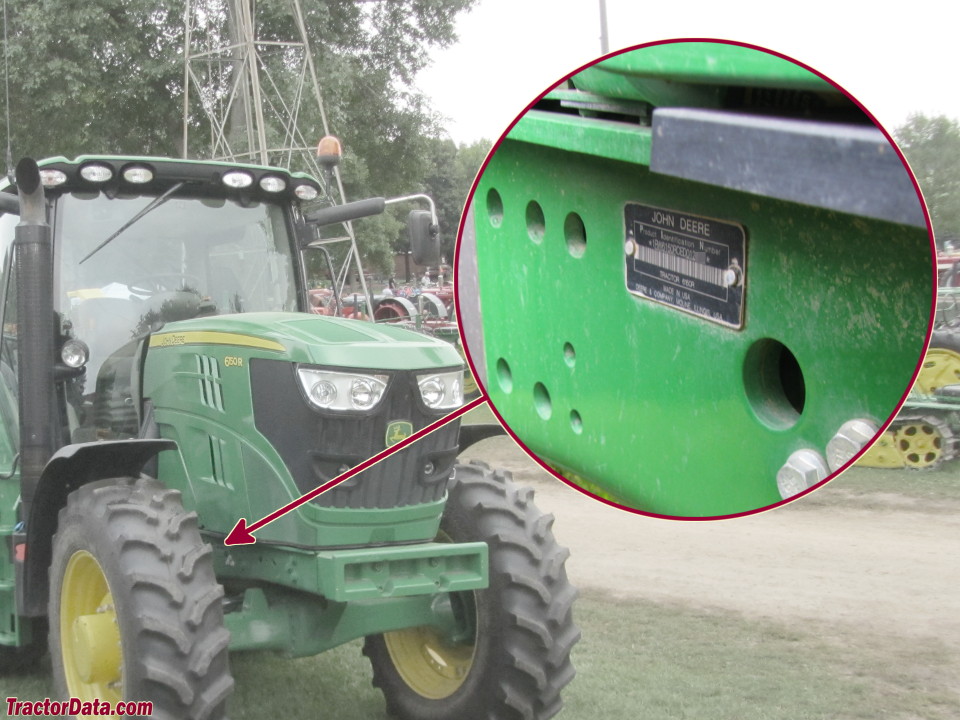

6150R Serial Number Location
John Deere 6150R serial number location
Serial number plate on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps120
 150 (optional)
 200 (optional
Charging volts14
Battery CCA1200
Battery volts12
Battery Group4D
References
6150R references literature
6R Series Tractors published in 2012, by John Deere
Operator's Manual Tractors 6140R, 6150R, 6150RH, 6170R, 6190R and 6120R (OMAL211531) published in 2014
