John Deere 5525N Engine
|
|
| Engine Detail | |
| John Deere 4045 | |
| turbocharged diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement | 276 ci 4.5 L |
| Bore/Stroke | 4.19x5.00 inches 106 x 127 mm |
| Power (gross) | 91 hp 67.9 kW |
| Fuel system | direct injection |
| Cooling system | viscous drive fan with single thermostat |
| Air cleaner | dry dual element |
| Compression | 17.6:1 |
| Rated RPM | 2400 |
| Idle RPM | 825-2625 |
| Firing order | 1-3-4-2 |
| Starter | electric |
| Starter volts | 12 |
| Coolant capacity | 12 qts 11.4 L |
| Intake valve clearance | 0.014 inches 0.356 mm |
| Exhaust valve clearance | 0.018 inches 0.457 mm |

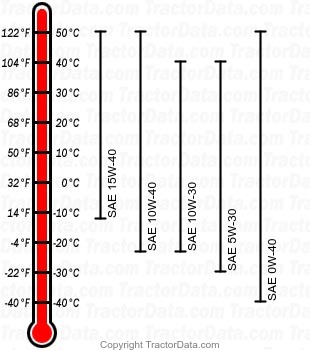

| Engine Oil | |
| |
| Oil capacity | 9 qts 8.5 L |
| Oil change | 300 h |
| 500 h (Deere PLUS-50) | |
