John Deere 5425N Engine


John Deere 5425N tractor photo
2005 - 2008
5025 Series
Orchard/Vineyard tractor
Series map:
5325N
5425N
5525N
67.0hp
81.0hp
91.0hp
Engine Detail
John Deere 4045
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Power (gross)81 hp
60.4 kW
Fuel systemdirect injection
Cooling systemviscous drive fan with single thermostat
Air cleanerdry dual element
Compression17.6:1
Rated RPM2400
Idle RPM825-2625
Firing order1-3-4-2
Starterelectric
Starter volts12
Coolant capacity12 qts
11.4 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

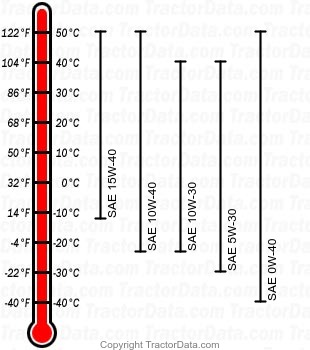

5425N diesel engine oil chart
Oil capacity9 qts
8.5 L
Oil change300 h
 500 h (Deere PLUS-50)
