John Deere 5325N Transmission


John Deere 5325N tractor photo
2005 - 2008
5025 Series
Orchard/Vineyard tractor
Series map:
5325N
5425N
67.0hp
81.0hp
Transmission options
12-speed partially synchonized
24-speed two-speed power shift
Transmission
TransmissionPowrReverser
Typepartially synchonized
Gears12 forward
Oil capacity46 qts
43.5 L
Oil type
-10o↔122oF [-23o↔50oC]   : JD Hy-Gard
-40o↔86oF [-40o↔30oC]   : JD Low-Viscosity Hy-Gard
Four gears (1-4) in three ranges (A-C) with left-hand power shuttle. Gears may be shifted on the move, using the clutch. Tractor must be stopped, and clutch used, to shift ranges.
Speeds
With 12.4-24 rear tires. Reverse speeds about 10% faster than forward.

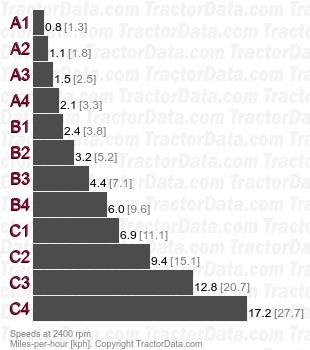

5325N PowrReverser partially synchonized speeds
Transmission
TransmissionHi/Lo PowrReverser
Typetwo-speed power shift
Gears24 forward and reverse
Oil capacity48 qts
45.4 L
Four gears (1-4) in three ranges (A-C) with left-hand power shuttle and two-speed push-button power shift. Gears may be shifted on the move, using the clutch. Tractor must be stopped, and clutch used, to shift ranges.
Speeds
With 12.4-24 rear tires. Reverse speeds about 10% faster than forward.

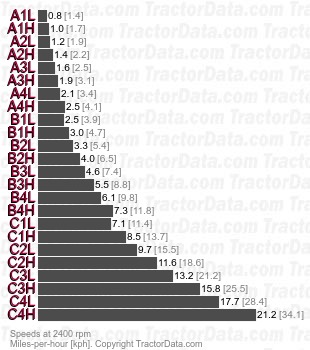

5325N Hi/Lo PowrReverser two-speed power shift speeds
