John Deere 5325N Engine


John Deere 5325N tractor photo
2005 - 2008
5025 Series
Orchard/Vineyard tractor
Series map:
5325N
5425N
67.0hp
81.0hp
Engine Detail
John Deere 5030
turbocharged diesel
5-cylinder
liquid-cooled
Displacement184 ci
3.0 L
Bore/Stroke3.39x4.13 inches
86 x 105 mm
Power (gross)67 hp
50.0 kW
Fuel systemintegrated fuel system with block
Cooling systemviscous drive fan with single thermostat
Air cleanerdry dual element
Compression18:1
Rated RPM2400
Idle RPM900-2625
Firing order1-2-4-5-3
Starterelectric
Starter volts12
Coolant capacity10 qts
9.5 L
Engine Oil

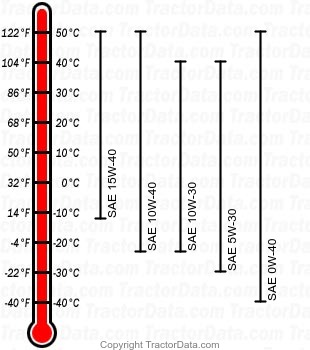

5325N diesel engine oil chart
Oil capacity11 qts
10.4 L
Oil change300 h
 500 h (Deere PLUS-50)
