John Deere 6170M
| | 2013 - 2015 |
| 6M Series | | Row-Crop tractor |
|
Series map:
6150M
6170M
150.0hp
170.0hp
| Production |
| Manufacturer | John Deere
|
| Row-Crop tractor |
| Built in Mannheim, Baden-Württemberg, Germany |
| Original price | $118,344 (2014 PowrQuad PLUS 16 Cab 2WD )
|
| $130,807 (2014 AutoQuad Cab 4WD )
|
| John Deere 6170M Power |
| Engine (gross) | 170 hp
126.8 kW
|
| Engine (max) | 173 hp
129.0 kW
|
| PTO (claimed) | 142 hp
105.9 kW
|
| Drawbar (tested) | 131.78 hp
98.3 kW
|
| PTO (tested) | 156.52 hp
116.7 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Differential lock | Electro-hydraulic rear
|
| | limit-slip front (4WD)
|
| Steering | hydrostatic power
|
| Hydraulic wet disc brakes |
| Cab with air-conditioning. GreenStar (optional); AutoTrac (optional) |
| Capacity |
| Fuel | 107 gal
405.0 L
|
| Hydraulic system | 15.8 gal
59.8 L
|
| Hydraulics |
| Type | closed center load sensing pressure and flow compensated
|
| Capacity | 15.8 gal
59.8 L
|
| Pressure | 2900 psi
200.0 bar
|
| Rear valves | 1 to 3
|
| Mid valves | 2 or 3 (optional)
|
| Pump flow | 30 gpm
113.6 lpm
|
| SCV flow | 26.4 gpm
99.9 lpm
|
| Tractor hitch |
| Rear Type | III/IIIN
|
| Control | electrohydraulic load sensing
|
| Rear lift (at 24"/610mm) | 8360 lbs
3792 kg
|
| | 10582 lbs (optional)
4799 kg
|
| Drawbar | Cat. II
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000 (1.375)
|
| Engine RPM | 540@1932
|
| | 1000@1932
|

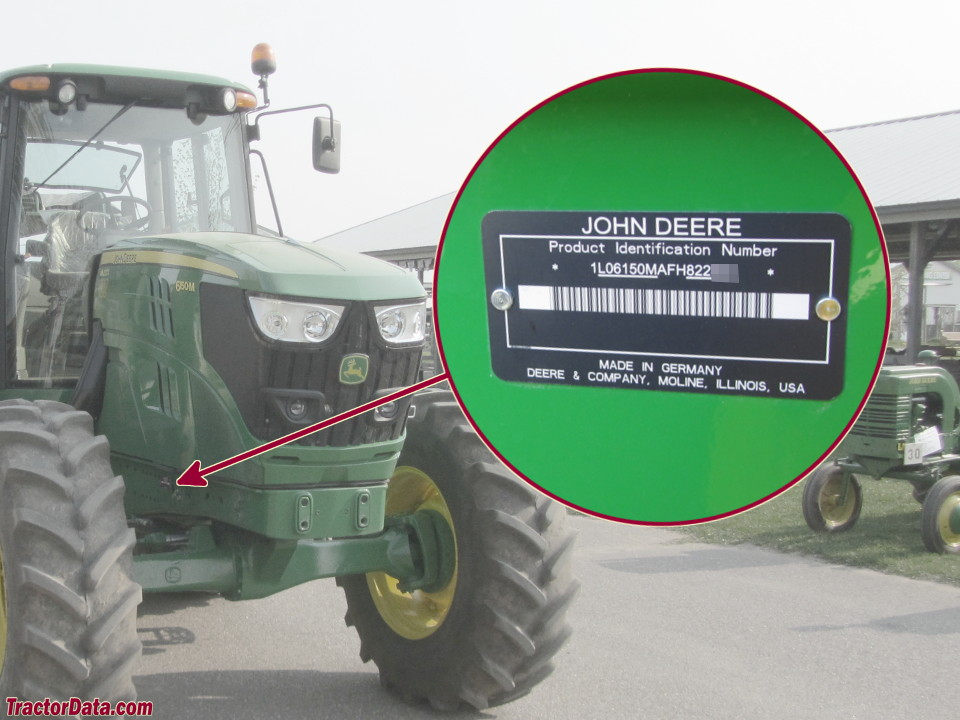

| 6170M Serial Number Location |
 |
| Serial number plate on the right side of the tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 90
|
| | 150 (optional)
|
| Charging volts | 14
|
| Battery volts | 12
|
| References |
 |
| 6M Series Tractors published in 2013, by John Deere |
