J.I. Case 310E Engine


J.I. Case 310E tractor photo
1961 - 1962
Agricultural Crawler tractor
Series map:
310E
40.0hp
Engine options
J.I. Case 3.1L 4-cyl diesel
J.I. Case 2.4L 4-cyl gasoline
Engine Detail
J.I. Case G-188D
diesel
4-cylinder
liquid-cooled
Displacement188.4 ci
3.1 L
Bore/Stroke3.8125x4.125 inches
97 x 105 mm
Power40 hp
29.8 kW
Air cleaneroil bath
Compression17.5:1
Rated RPM1850
Torque128 lb-ft
173.6 Nm
Torque RPM1350
Starter volts12
Coolant capacity13 qts
12.3 L

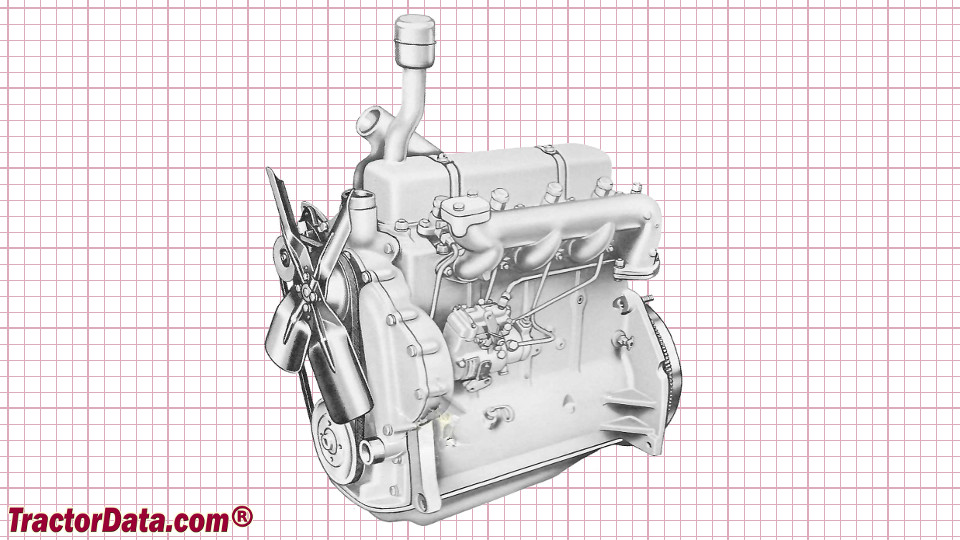

J.I. Case 310E Engine
J.I. Case 310E engine image
Engine Detail
J.I. Case G-148B
gasoline
4-cylinder
liquid-cooled
Displacement148 ci
2.4 L
Bore/Stroke3.375x4.125 inches
86 x 105 mm
Power42 hp
31.3 kW
Fuel systemupdraft carburetor
Air cleaneroil bath
Compression7.25:1
Rated RPM1850
Torque128 lb-ft
173.6 Nm
Torque RPM1200
Starter volts12
Coolant capacity12 qts
11.4 L

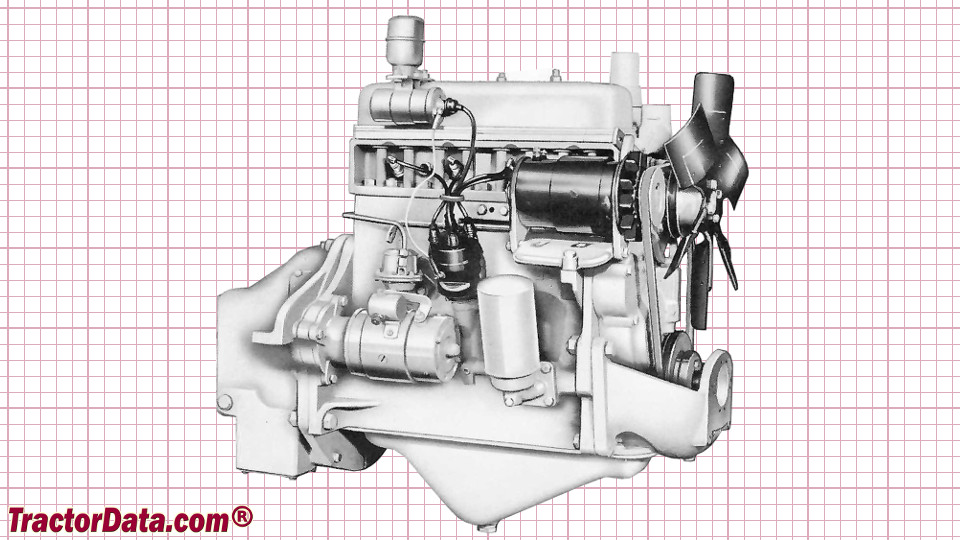

J.I. Case 310E Engine
J.I. Case 310E engine image
