J.I. Case 310C

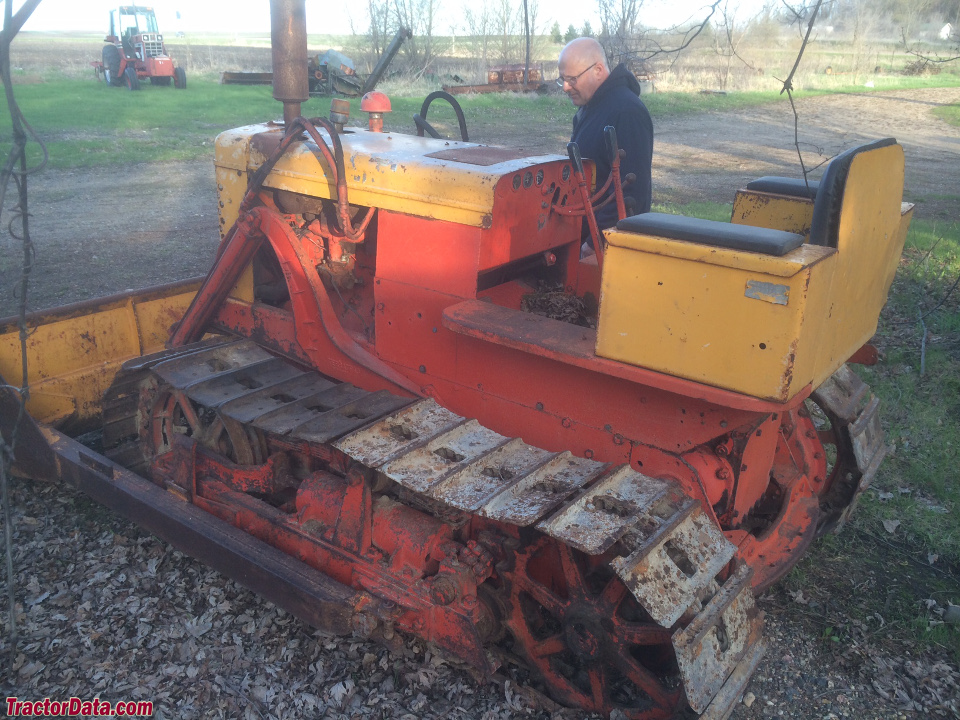

J.I. Case 310C tractor photo
1958 - 1960
Agricultural Crawler tractor
Series map:
310C
42.0hp
Production
ManufacturerJ.I. Case
Agricultural Crawler tractor
J.I. Case 310C Engine
J.I. Case 2.4L 4-cyl gasoline
Engine details ...
J.I. Case 310C Power
Engine (gross)42 hp
31.3 kW
Drawbar (claimed)30 hp
22.4 kW
Belt (claimed)36 hp
26.8 kW
Plows3
Drawbar (tested)26.75 hp
19.9 kW
PTO (tested)33.32 hp
24.8 kW
Performance test details ...
Mechanical
Drivecrawler
Contracting band brakes
Open operator station.
Hydraulics
Typeopen center
Pump flow15 gpm
56.8 lpm
Power Take-off (PTO)
Rear PTO Type540 (1.375)
Engine RPM540@1727
Dimensions & Tracks
Wheelbase54 inches
137 cm
Weight5300 to 6145 pounds
10-inch tracks
Full dimensions and tracks ...
310C Serial Numbers
19573000001 (310)
19583003001 (310)
19593008001 (310C)

FAQ: How to read a serial number table.
Belt Pulley
Diameter8.5 inches
21 cm
Width6.5 inches
16 cm
RPM1193
Speed2650 ft/min
807.72 meters/min
References
310C references literature
310 Agricultural Crawler published in 1957, by J.I. Case
Case Tool Bar Dozer published in 1958, by J.I. Case
J.I. Case presents published in 1957
