J.I. Case 310C Tests


J.I. Case 310C tractor photo
1958 - 1960
Agricultural Crawler tractor
Series map:
310C
42.0hp
Nebraska Tractor Test 709

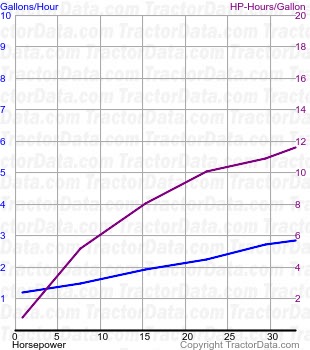

310C fuel use from test 709
Nebraska Tractor Test 709
Gasoline 3-speed crawler
July 14 - 31, 1959
Link: Nebraska Tractor Test 709 file
PTO performance
Power at rated engine speed33.32 hp
24.8 kW
Fuel use2.9 gal/hour
11.0 l/hour
Power at rated PTO speed31.43 hp
23.4 kW
Fuel use2.7 gal/hour
10.2 l/hour
Drawbar performance
Max power26.75 hp
19.9 kW
Fuel use3.2 gal/hour
12.1 l/hour
Gear 2 used for power test.
Max pull5815 lbs
2637 kg
Gear 1 used for pull test.
