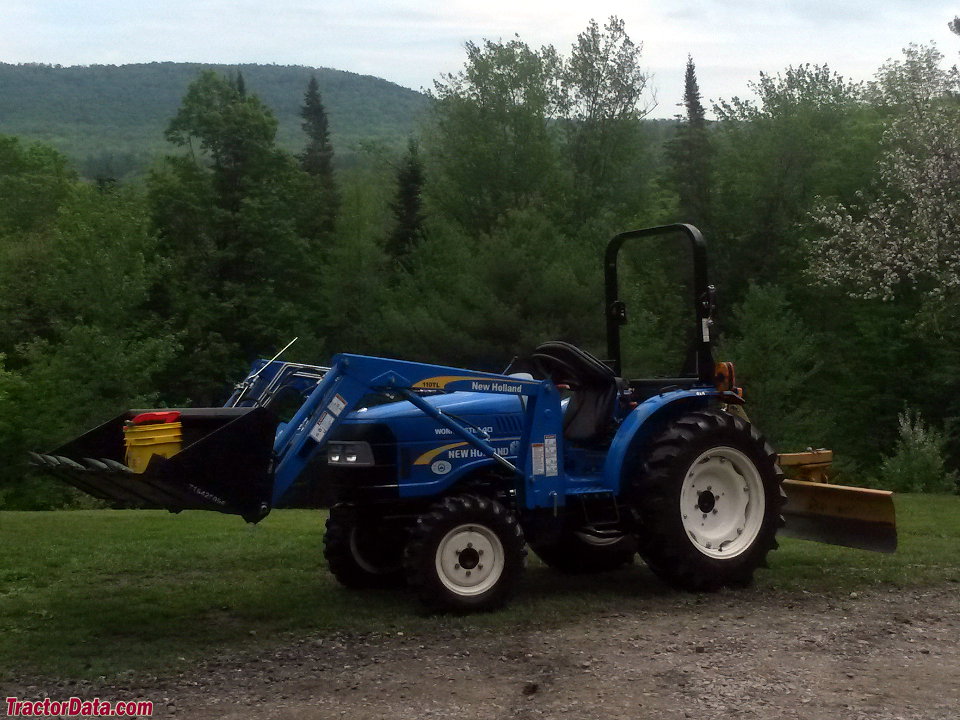

New Holland Workmaster 40
| | 2013 - 2015 |
| Workmaster Series | | Compact Utility tractor |
|
| Production |
| Manufacturer | New Holland
|
| Compact Utility tractor |
| New Holland Workmaster 40 Power |
| Engine (gross) | 38 hp
28.3 kW
|
| Gear PTO (claimed) | 33.4 hp
24.9 kW
|
| Hydro PTO (claimed) | 31.2 hp
23.3 kW
|
| Mechanical |
| Four-wheel drive |
| Differential lock | mechanical rear
|
| Steering | hydrostatic power
|
| Wet disc brakes |
| Two-post foldable ROPS. |
| Hydraulics |
| Type | open center gear pump
|
| Pump flow | 8.2 gpm
31.0 lpm
|
| Total flow | 13 gpm
49.2 lpm
|
| Steering flow | 4.8 gpm
18.2 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift (at ends) | 1807 lbs
819 kg
|
| Rear lift (at 24"/610mm) | 1433 lbs
650 kg
|
| Rear Arms | fixed link ends with telescoptic stabilizers
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic
|
| Rear PTO Type | 540 (1.375)
|
| Mid PTO | independent (optional)
|
| Clutch | electro-hydraulic
|
| Mid PTO Type | 2000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 50
|
| Battery CCA | 660
|
| Battery volts | 12
|
| Battery AH | 80
|
