| | 2013 - 2017 |
| 5600 Series | | Utility tractor |
|
Series map:
5609
5610
5611
90.0hp
100.0hp
105.0hp
| Transmission options |
| 16-speed four-speed power shift with power shuttle |
| 32-speed creeper |
| Transmission |
| Transmission | Dyna-4
|
| Type | four-speed power shift with power shuttle
|
| Gears | 16 forward and reverse
|
| Clutch | wet disc
|
| Oil capacity | 68.7 qts
65.0 L
|

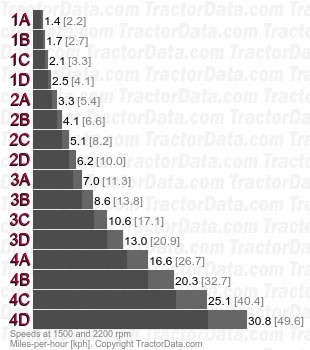

| Speeds |
| With 16.9-38 R1 rear tires. |
|
| Transmission |
| Type | creeper
|
| Gears | 32 forward and reverse
|

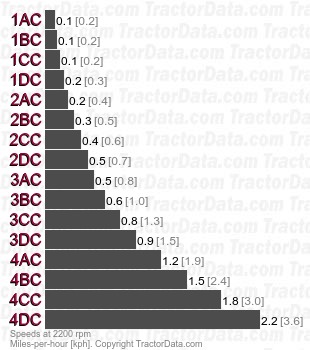

| Speeds |
| With 16.9-38 R1 rear tires. |
|
