| 2013 - 2017 |
5600 Series | Utility tractor |
|
Series map:
5609
5610
90.0hp
100.0hp
Transmission options |
16-speed four-speed power shift with power shuttle |
32-speed creeper |
Transmission |
Transmission | Dyna-4
|
Type | four-speed power shift with power shuttle
|
Gears | 16 forward and reverse
|
Clutch | wet disc
|
Oil capacity | 68.7 qts 65.0 L
|

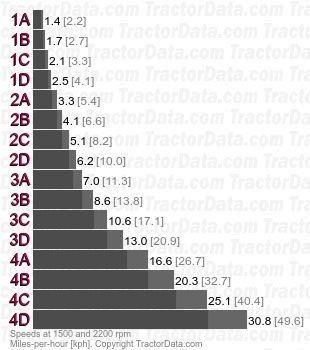

Speeds |
With 16.9-38 R1 rear tires. |
|
Transmission |
Type | creeper
|
Gears | 32 forward and reverse
|

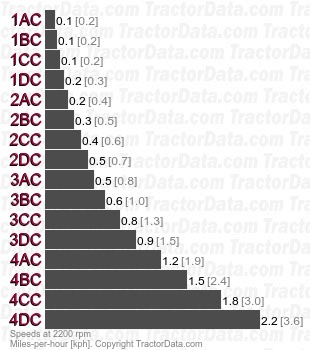

Speeds |
With 16.9-38 R1 rear tires. |
|
