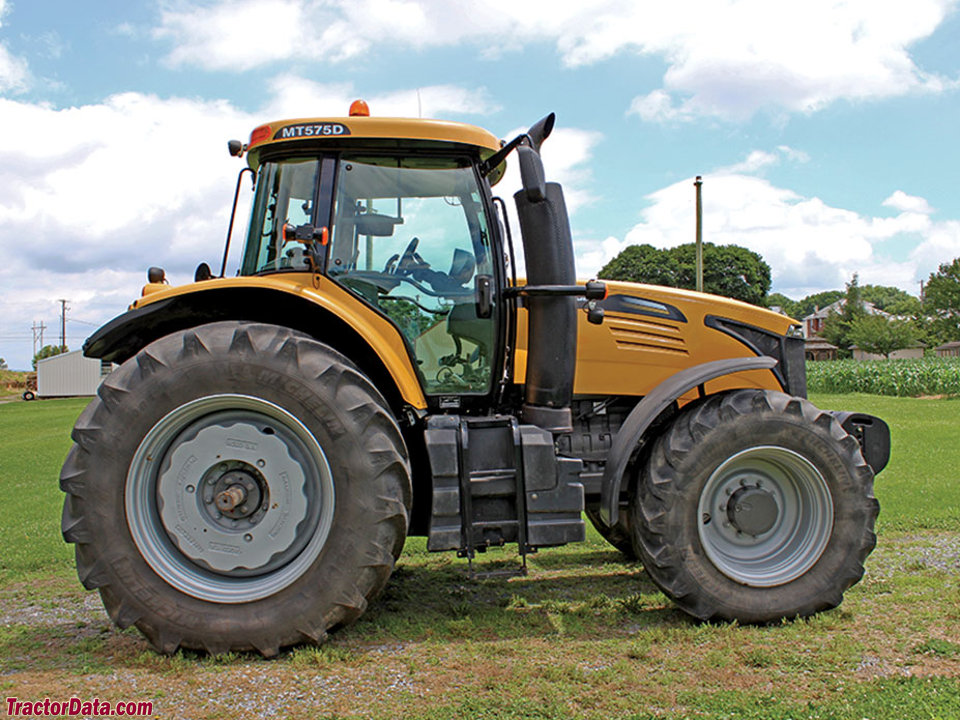

Challenger MT575D
| | 2012 - 2014 |
| MT500D Series | | Row-Crop tractor |
|
| Production |
| Manufacturer | Challenger (a part of AGCO)
|
| Row-Crop tractor |
| Factories | Beauvais, France
|
| | Jackson, Minnesota, USA
|
| Original price | $161,244 (2013 classic )
|
| $185,595 (2013 deluxe )
|
| $195,905 (2013 deluxe )
|
| Variants |
| 7622 | similar Massey Ferguson model
|
| Challenger MT575D Power |
| Engine | 200 hp
149.1 kW
|
| PTO (claimed) | 165 hp
123.0 kW
|
| Drawbar (tested) | 168.77 hp
125.9 kW
|
| PTO (tested) | 202.4 hp
150.9 kW
|
 Performance test details ... |
| Mechanical |
| Four-wheel drive |
| Final drives | inboard planetary
|
| Differential lock | electro-hydraulic full locking
|
| Steering | hydrostatic power
|
| Hydraulic wet disc brakes |
| Trailer brakes | hydraulic (optional)
|
| | pneumatic (optional)
|
| Cab standard with air-conditioning. AGCO System 150 (optional); AGCOMMAND (optional) |
| Capacity |
| Fuel | 114 gal
431.5 L
|
| Exhaust fluid (DEF) | 11 gal
41.6 L
|
| Hydraulic system | 26.4 gal
99.9 L
|
| Hydraulics |
| Type | closed center load sensing (CCLS)
|
| Capacity | 26.4 gal
99.9 L
|
| Pressure | 2900 psi
200.0 bar
|
| Valves | 2 to 4
|
| SCV flow | 24.3 gpm
92.0 lpm
|
| Total flow | 29 gpm
109.8 lpm
|
| | 39 gpm (optional)
147.6 lpm
|
| Tractor hitch |
| Rear Type | III
|
| Control | electronic lower link draft control
|
| Rear lift (at 24"/610mm) | 12500 lbs (AutoPower)
5670 kg
|
| | 11650 lbs (CVT)
5284 kg
|
| Drawbar | Cat. 2
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic
|
| Rear PTO Type | 540/1000
|
| | 540/540E/1000
|
| | 540E/1000E/1000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 175
|
| | 240 *Total capacity with dual 120A alternator option.
|
| Batteries | 2
|
| Battery CCA | 600
|
| Battery volts | 12
|
| References |
 |
| Challenger MT500D Series published in 2011, by AGCO |
| Challenger MT500D Series published in 2013, by AGCO |
