Challenger MT555D Tests
|
|
| Tractor Tests | |
| OECD 2703: diesel Techstar CVT 4WD | |
| OECD 2758: diesel AutoPower VI 4WD |
| OCED Tractor Test 2703 | |||
| |||
| OCED Tractor Test 2703 | |
| Diesel Techstar CVT 4WD January 2012 - March 2012, Link: OCED Tractor Test 2703 file | |
| PTO performance | |
| Max power | 173.3 hp 129.2 kW |

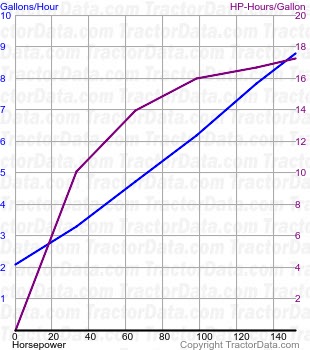

| Fuel use | 9.4 gal/hour 35.6 l/hour |
| Power at rated engine speed | 151.5 hp 113.0 kW |
| Fuel use | 8.8 gal/hour 33.3 l/hour |
| Power at rated PTO speed | 161.6 hp 120.5 kW |
| Fuel use | 9.1 gal/hour 34.4 l/hour |
| Drawbar performance | |
| Max power | 115.2 hp 85.9 kW |
| Fuel use | 8.1 gal/hour 30.7 l/hour |
| Pull at 7.44 KPH | |
| Max pull | 16860 lbs 7647 kg |
| Pull at 2.23 KPH | |
| OCED Tractor Test 2758 | |||
| |||
| OCED Tractor Test 2758 | |
| Diesel AutoPower VI 4WD September 2012 - October 2012, Link: OCED Tractor Test 2758 file | |
| PTO performance | |
| Max power | 169.9 hp 126.7 kW |

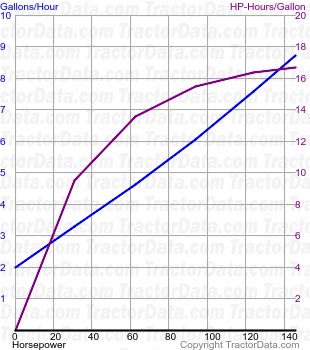

| Fuel use | 9.4 gal/hour 35.6 l/hour |
| Power at rated engine speed | 145.5 hp 108.5 kW |
| Fuel use | 8.7 gal/hour 32.9 l/hour |
| Power at rated PTO speed | 162.0 hp 120.8 kW |
| Fuel use | 9.2 gal/hour 34.8 l/hour |
| Drawbar performance | |
| Max power | 123.8 hp 92.3 kW |
| Fuel use | 8.1 gal/hour 30.7 l/hour |
| Gear 3A used for power test. | |
| Max pull | 14835 lbs 6729 kg |
| Gear 1F used for pull test. | |
