Tractors > Challenger > MT525D

Challenger MT525D Tests



Challenger MT525D tractor photo
2013 - 2014
MT500D Series
Row-Crop tractor
Series map:
MT515D
MT525D
MT535D
130.0hp
140.0hp
150.0hp
Tractor Tests
OECD 2753: diesel AutoPower IV 4WD
OECD 2791: diesel AutoPower VI 4WD
OECD 2774: diesel CVT 4WD
OCED Tractor Test 2753

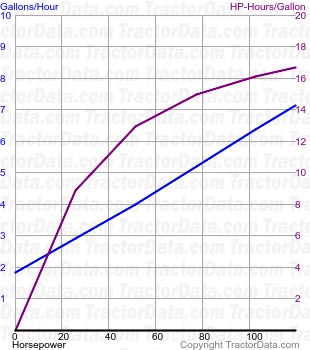

MT525D fuel use from test 905
OCED Tractor Test 2753
Diesel AutoPower IV 4WD
April 2012 - May 2012,
Link: OCED Tractor Test 2753 file
PTO performance
Max power141.9 hp
105.8 kW
Fuel use8.1 gal/hour
30.7 l/hour
Power at rated engine speed127.1 hp
94.8 kW
Fuel use7.5 gal/hour
28.4 l/hour
Power at rated PTO speed137.7 hp
102.7 kW
Fuel use7.9 gal/hour
29.9 l/hour
Drawbar performance
Max power106.6 hp
79.5 kW
Fuel use7.1 gal/hour
26.9 l/hour
Gear 3A used for power test.
Max pull12295 lbs
5577 kg
Gear 2A used for pull test.
OCED Tractor Test 2791

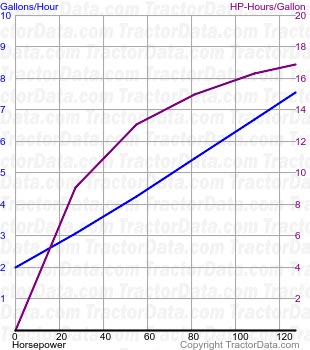

MT525D fuel use from test 925
OCED Tractor Test 2791
Diesel AutoPower VI 4WD
November 2012 - July 2013,
Link: OCED Tractor Test 2791 file
PTO performance
Power at rated engine speed119.2 hp
88.9 kW
Fuel use7.1 gal/hour
26.9 l/hour
Power at rated PTO speed130.3 hp
97.2 kW
Fuel use7.5 gal/hour
28.4 l/hour
Drawbar performance
Max power98.0 hp
73.1 kW
Fuel use6.5 gal/hour
24.6 l/hour
Gear 3A used for power test.
Max pull13060 lbs
5924 kg
Gear 1F used for pull test.
OCED Tractor Test 2774

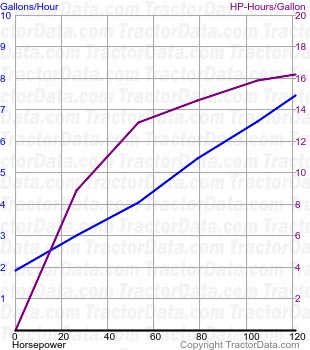

MT525D fuel use from test 913
OCED Tractor Test 2774
Diesel CVT 4WD
March 2013 - April 2013,
Link: OCED Tractor Test 2774 file
PTO performance
Max power136.2 hp
101.6 kW
Fuel use7.9 gal/hour
29.9 l/hour
Drawbar performance
Max power97.9 hp
73.0 kW
Fuel use7.6 gal/hour
28.8 l/hour
Pull at 7.86KPH
Max pull15240 lbs
6912 kg
Pull at 3.51KPH
