John Deere 3033R Engine


John Deere 3033R tractor photo
2014 -
3R Series
Compact Utility tractor
Series map:
3033R
3039R
31.8hp
38.2hp
Engine Detail
Yanmar 3TNV88
diesel
3-cylinder
liquid-cooled
Displacement100.2 ci
1.6 L
Bore/Stroke3.46x3.54 inches
88 x 90 mm
EmissionsTier IV
Emission controldiesel particulate filter (DPF)
Power31.8 hp
23.7 kW
Rated RPM2600
Starterelectric
Starter volts12
Coolant capacity5.6 qts (ROPS)
5.3 L
 7.4 qts (Cab)
7.0 L
Engine Oil

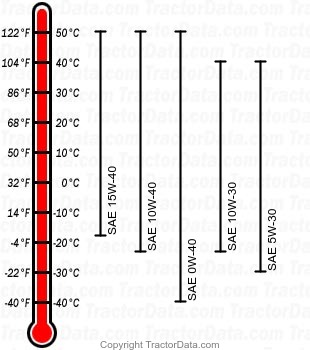

3033R diesel engine oil chart
Oil capacity4.5 qts
4.3 L
Oil change200 h
