Cabelas LM43
| | 2013 - 2016 |
| LM Series | | Compact Utility tractor | | TYM built |
|
Series map:
LM35
LM43
LM50
35.0hp
42.7hp
50.7hp
| Production |
| Distributor | Cabelas
|
| Manufacturer | TYM
|
| Compact Utility tractor |
| Built in South Korea |
| Original price | $27,699 (2013 shuttle ROPS )
|
| $29,499 (2013 hydrostatic ROPS )
|
| $36,499 (2013 hydrostatic cab )
|
| $21,699 (2014 shuttle ROPS )
|
| $23,199 (2014 hydrostatic ROPS )
|
| $26,399 (2014 hydrostatic cab )
|
| Variants |
| LM43 | shuttle
|
| LM43H | hydrostatic
|
| Cabelas LM43 Power |
| Engine (gross) | 42.7 hp
31.8 kW
|
| PTO (claimed) | 34.4 hp (gear)
25.7 kW
|
| | 31.2 hp (hydro)
23.3 kW
|
| Mechanical |
| Four-wheel drive |
| Steering | hydrostatic power
|
| Two-post ROPS. Cab optional with air conditioning. |
| Capacity |
| Fuel | 17 gal
64.3 L
|
| Hydraulic system | 9.2 gal
34.8 L
|
| Front axle | 10.5 qts
9.9 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 9.2 gal
34.8 L
|
| Valves | 2 to 3
|
| Pump flow | 8.8 gpm
33.3 lpm
|
| Total flow | 13.4 gpm
50.7 lpm
|
| Steering flow | 4.6 gpm
17.4 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position and draft control
|
| Rear lift (at ends) | 3314 lbs
1503 kg
|
| Rear lift (at 24"/610mm) | 2945 lbs
1335 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro hydraulic
|
| Rear PTO Type | 540 (1.375)
|

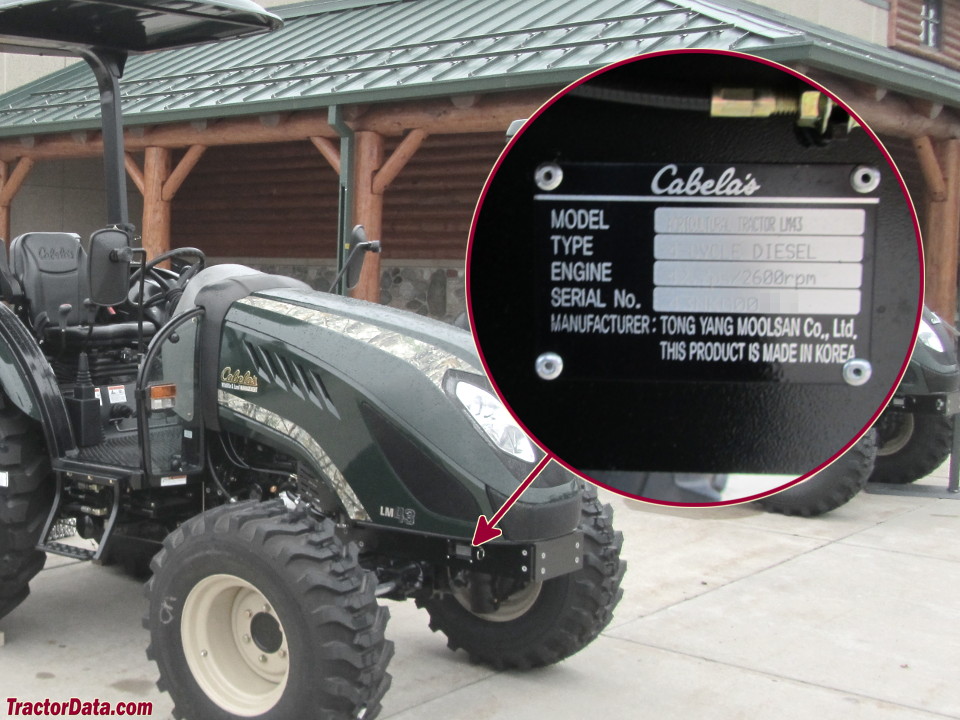

| LM43 Serial Number Location |
 |
| Tractor frame, right side, above front axle. |
| References |
 |
| Spring Wildlife & Land Management Catalog published in 2014, by Cabelas |
| Summer Wildlife & Land Management Catalog published in 2014, by Cabelas |
