Tractors > CaseIH > Steiger 470

CaseIH Steiger 470 Tests



CaseIH Steiger 470 tractor photo
2014 - 2023
Steiger 4WD Series
Four-wheel Drive (4WD) tractor
Series map:
Steiger 420
Steiger 470
Steiger 500
420.0hp
470.0hp
500.0hp
OCED Tractor Test 2094

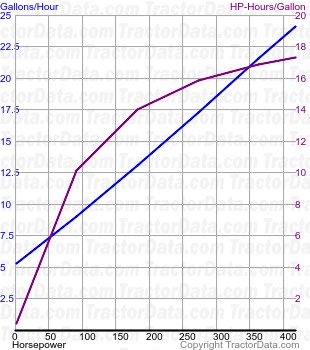

Steiger 470 fuel use from test 959
OCED Tractor Test 2094
Diesel 16-speed 4WD
September 11 - 22, 2014
Link: OCED Tractor Test 2094 file
PTO performance
Max power468.35 hp
349.2 kW
Fuel use25.3 gal/hour
95.8 l/hour
Power at rated engine speed417.16 hp
311.1 kW
Fuel use24.1 gal/hour
91.2 l/hour
Power at rated PTO speed459.94 hp
343.0 kW
Fuel use24.4 gal/hour
92.4 l/hour
Drawbar performance
Max power387.67 hp
289.1 kW
Fuel use24.1 gal/hour
91.2 l/hour
Gear 4 used for power test.
Max pull43495 lbs
19729 kg
Gear 1 used for pull test.
