Tractors > CaseIH > Steiger 420

CaseIH Steiger 420 Tests



CaseIH Steiger 420 tractor photo
2014 - 2023
Steiger 4WD Series
Four-wheel Drive (4WD) tractor
Series map:
Steiger 370
Steiger 420
Steiger 470
370.0hp
420.0hp
470.0hp
OCED Tractor Test 2093

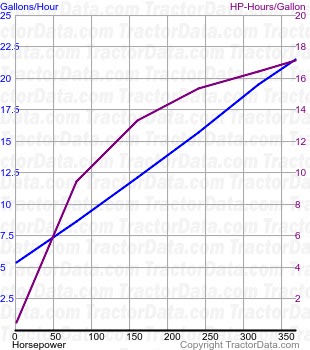

Steiger 420 fuel use from test 958
OCED Tractor Test 2093
Diesel 16-speed 4WD
September 23 - October 1, 2014
Link: OCED Tractor Test 2093 file
PTO performance
Max power413.44 hp
308.3 kW
Fuel use22.5 gal/hour
85.2 l/hour
Power at rated engine speed367.38 hp
274.0 kW
Fuel use21.5 gal/hour
81.4 l/hour
Power at rated PTO speed407.49 hp
303.9 kW
Fuel use21.7 gal/hour
82.1 l/hour
Drawbar performance
Max power340.86 hp
254.2 kW
Fuel use21.4 gal/hour
81.0 l/hour
Gear 4 used for power test.
Max pull41762 lbs
18943 kg
Gear 1 used for pull test.
