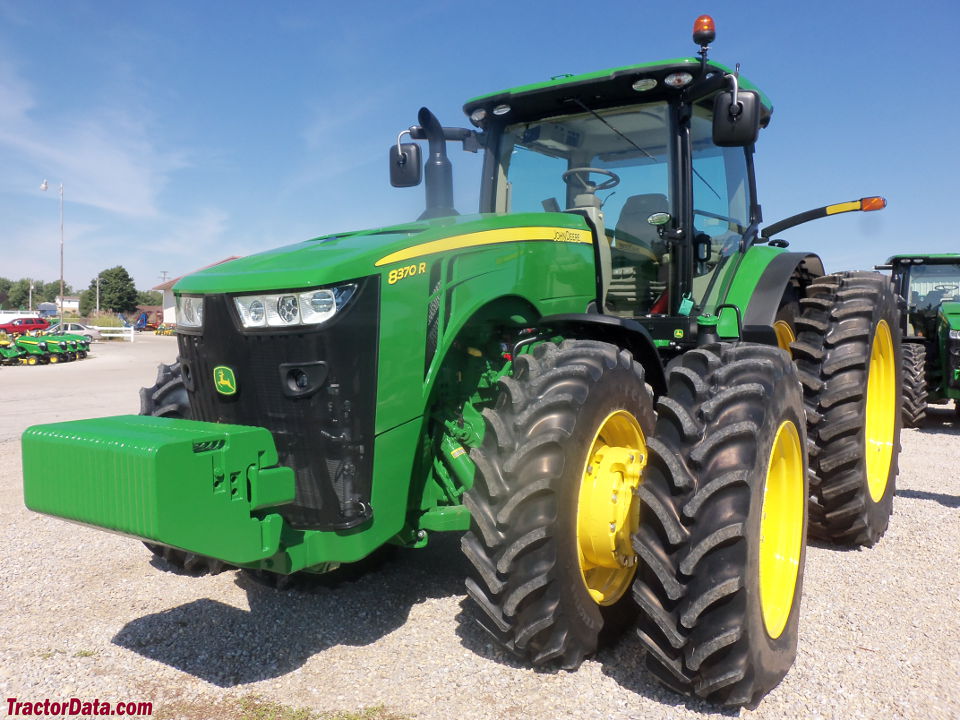

John Deere 8370R
|
|
| Production | |
| Manufacturer | John Deere |
| Row-Crop tractor | |
| Built in Waterloo, Iowa, USA | |
| John Deere 8370R Engine | |
| John Deere 9.0L 6-cyl diesel | |
 Engine details ... |
| John Deere 8370R Transmissions | |
| infinitely variable transmission (IVT) | |
| 23-speed full power shift | |
 Transmission details ... |
| John Deere 8370R Power | |
| Engine (gross) | 370 hp 275.9 kW |
| Engine (max) | 407 hp 303.5 kW |
| PTO (claimed) | 313 hp 233.4 kW |
| 150 hp (front) 111.9 kW | |
| Drawbar (tested) | 297.72 hp 222.0 kW |
| PTO (tested) | 375.33 hp 279.9 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Final drives | inboard planetary |
| Differential lock | hydraulic rear standard |
| hydraulic front with 1500 and ILS axles | |
| Steering | hydrostatic power |
| Active Command steering optional | |
| Hydraulic wet disc brakes | |
| Trailer brakes | hydraulic (optional) |
| dual line air (optional) | |
| CommandView III cab standard with air-conditioning. AutoTrac ready; JDLink; ServiceADVISOR Remote | |
| Photos | |
 | |
 John Deere 8370R photos... | |
| Capacity | |
| Fuel | 170.4 gal 645.0 L |
| 181.2 gal (G49 chassis) 685.8 L | |
| Exhaust fluid (DEF) | 6.8 gal 25.7 L |
| Hydraulic system | 10.6 gal 40.1 L |
| 23.8 gal (optional) 90.1 L | |
| Hydraulics | |
| Type | closed-center load sensing pressure flow compensated |
| Capacity | 10.6 gal 40.1 L |
| 23.8 gal (optional) 90.1 L | |
| Rear valves | 4 to 6 |
| Front valves | 0 to 2 |
| Pump flow | 60 gpm 227.1 lpm |
| 85 gpm (optional) 321.7 lpm | |
| SCV flow | 35 gpm 132.5 lpm |
| 42 gpm (optional) 159.0 lpm | |
| Tractor hitch | |
| Rear Type | IVN/III |
| Rear lift | 15000 lbs 6804 kg |
| 20000 lbs (optional) 9072 kg | |
| Rear Arms | hydraulic center link optional |
| Front Hitch | optional |
| Front lift (at ends) | 11450 lbs 5193 kg |
| Drawbar | Cat 4 |
| Cat 4 Heavy-Duty optional | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1.75) |
| 1000/1000E (1.75 optional) | |
| 540/1000 (1.375 optional) | |
| Front PTO | optional independent |
| Front PTO Type | 1000 (1.75) |
| 1000 (1.375) | |
| Dimensions & Tires | |
| Wheelbase | 120.1 inches 305 cm |
| Weight | 32691 lbs 14828 kg |
| Front tire | 380/80R38 |
| Rear tire | 480/80R50 |
 Full dimensions and tires ... | |

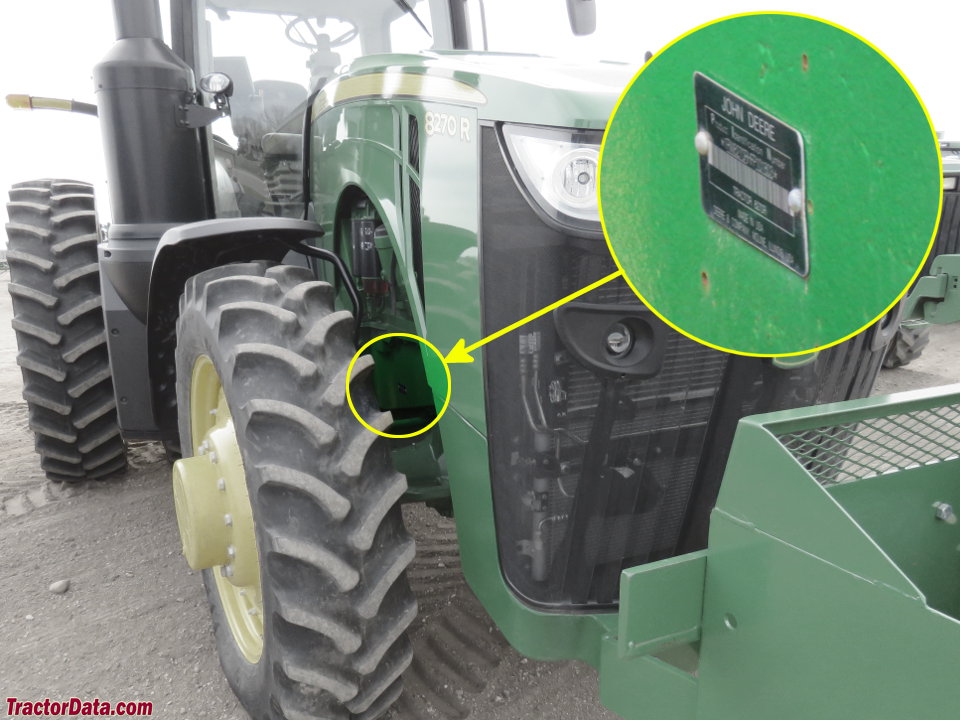

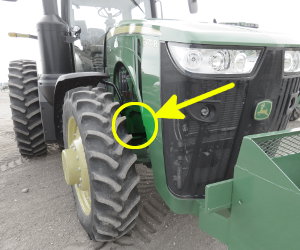

| 8370R Serial Number Location | |
 | |
| Serial number plate on the front-right of the tractor frame, above the front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 240 |
| Batteries | 2 |
| Battery CCA | 925 (each) |
| Battery volts | 12 |
