Tractors > John Deere > 7230R

John Deere 7230R Tests



John Deere 7230R tractor photo
2011 - 2019
Model year
7R Series
Row-Crop tractor
Series map:
7210R
7230R
7250R
210.0hp
230.0hp
250.0hp
OCED Tractor Test 2022

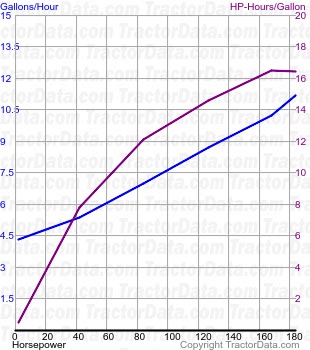

7230R fuel use from test 821
OCED Tractor Test 2022
Diesel CommandQuad 4WD
May 1 - 15, 2012
Link: OCED Tractor Test 2022 file
PTO performance
Max power225.07 hp
167.8 kW
Fuel use12.0 gal/hour
45.4 l/hour
Power at rated engine speed193.37 hp
144.2 kW
Fuel use11.2 gal/hour
42.4 l/hour
Power at rated PTO speed216.63 hp
161.5 kW
Fuel use12.0 gal/hour
45.4 l/hour
Drawbar performance
Max power179.34 hp
133.7 kW
Fuel use11.4 gal/hour
43.1 l/hour
Max pull21678 lbs
9833 kg
