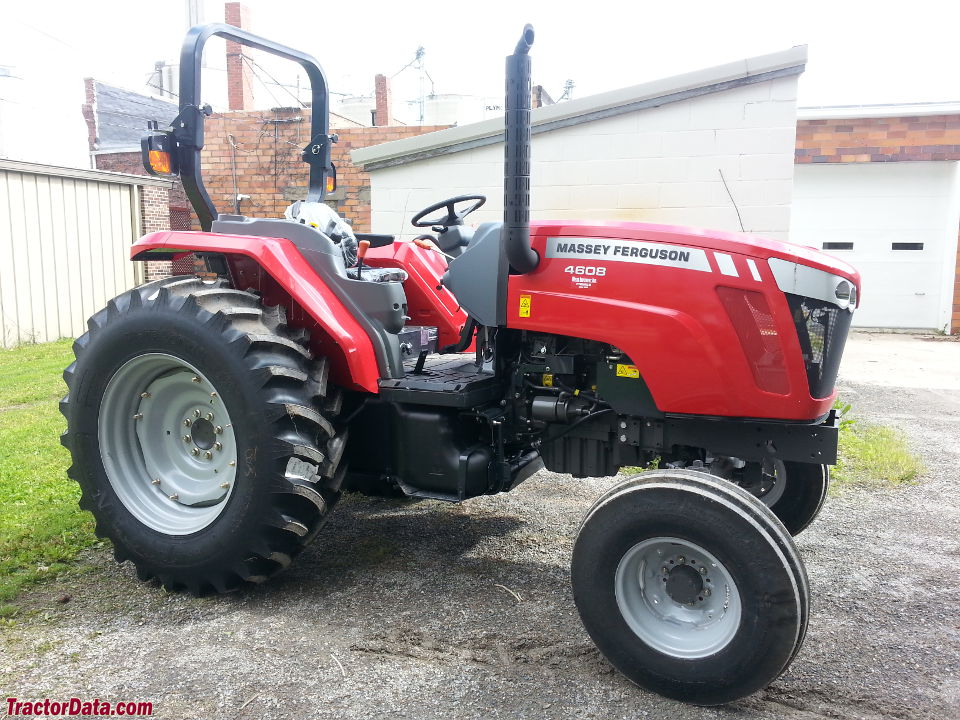

Massey Ferguson 4608
| | 2013 - 2015 |
| 4600 Series | | Utility tractor |
|
Series map:
4608
4609
80.0hp
90.0hp
| Production |
| Manufacturer | Massey Ferguson
|
| Utility tractor |
| Original price | $32,178 (2015 ROPS 2WD )
|
| $46,290 (2015 Cab 4WD )
|
| Massey Ferguson 4608 Power |
| Engine (gross) | 80 hp
59.7 kW
|
| Engine (net) | 75 hp
55.9 kW
|
| PTO (claimed) | 63.5 hp
47.4 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Final drives | internal planetary
|
| Differential lock | mechanical via foot pedal
|
| Power steering |
| Wet disc brakes |
| Two-post folding ROPS. Optional cab with air-conditioning. |
| Hydraulics |
| Type | open center tandem pump
|
| Rear valves | 1 to 3
|
| SCV flow | 17.1 gpm
64.7 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position and draft control
|
| Rear lift (at 24"/610mm) | 3417 lbs
1549 kg
|
| Rear Arms | extendable ball ends
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electronic
|
| Rear PTO Type | 540/1000
|
| Engine RPM | 540@1993
|
| | 1000@2178
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 95
|
| Battery volts | 12
|
