Cub Cadet 7304 Engine



Cub Cadet 7304 tractor photo
2003 - 2004
7000 Series
Compact Utility tractor
Series map:
7264
7304
26.0hp
30.0hp
Engine Detail
Daihatsu DM950D
turbocharged diesel
3-cylinder
liquid-cooled
Displacement58.1 ci
1.0 L
Bore/Stroke2.835x3.071 inches
72 x 78 mm
Power30 hp
22.4 kW
Fuel systemindirect injection
Air cleanerpaper elment
Rated RPM3600
Idle RPM1200-3600
Starter volts12
Coolant capacity5.3 qts
5.0 L
Intake valve clearance0.008 inches (cold)
0.203 mm
Exhaust valve clearance0.008 inches (cold)
0.203 mm
Engine Oil

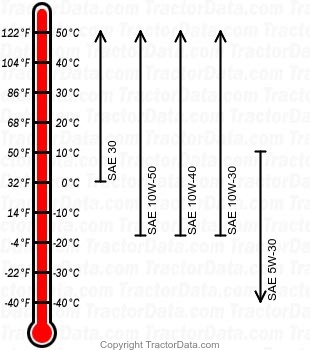

7304 diesel engine oil chart
Oil capacity3.5 qts
3.3 L
Oil change150 h
