Jeep CJ-3B Tests


Jeep CJ-3B tractor photo
1954 - 1968
Truck-type tractor
Series map:
CJ-3B
75.0hp
Nebraska Tractor Test 502

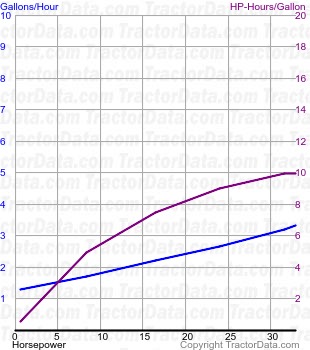

CJ-3B fuel use from test 502
Nebraska Tractor Test 502
Gasoline 6-speed 4WD
August 28 - September 4, 1953
Link: Nebraska Tractor Test 502 file
Belt power (max)35.23 hp
26.3 kW
Belt fuel use (max)3.4 gal/hour
12.9 l/hour
Drawbar performance
Max power27.08 hp
20.2 kW
Gear 1 used for power test.
Max pull2317 lbs
1050 kg
Gear 1 used for pull test.
