Tractors > Jeep > CJ-3A

Jeep CJ-3A Engine



Jeep CJ-3A tractor photo
1949 - 1953
Truck-type tractor
Series map:
CJ-3A
60.0hp
Engine Detail
Willys L-134
gasoline
4-cylinder
liquid-cooled
Displacement134.2 ci
2.2 L
Bore/Stroke3.125x4.375 inches
79 x 111 mm
Power60 hp
44.7 kW
Fuel systemcarburetor
Air cleaneroil bath
Compression6.5:1
Rated RPM2400
Firing order1-3-4-2
Starterelectric
Starter volts6
Coolant capacity11 qts
10.4 L
Engine Oil

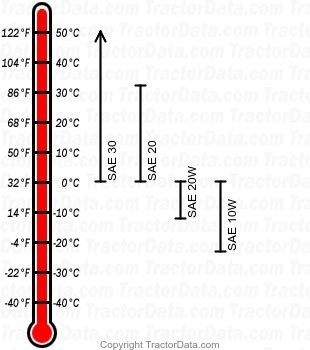

CJ-3A gasoline engine oil chart
Oil capacity5 qts
4.7 L
