John Deere 1025R Engine


John Deere 1025R tractor photo
2013 -
1 Sub-Compact Series
Sub-Compact Utility tractor
Series map:
1025R
23.8hp
Engine Detail
Yanmar 3TNV80
diesel
3-cylinder
liquid-cooled
Displacement77.2 ci
1.3 L
Bore/Stroke3.15x3.31 inches
80 x 84 mm
EmissionsTier 4
Power23.8 hp
17.7 kW
Fuel systemindirect injection
Air cleanerdry
Pre-heatingglow plugs
 block heater OptOptional
 coolant heater OptOptional
Compression23.5:1
Rated RPM3200
Operating RPM1575-3370
Torque40.7 lb-ft
55.2 Nm
Torque RPM3200
Starterelectric
Starter volts12
Starter power1.6 hp
1.2 kW
Coolant capacity3.9 qts
3.7 L
Engine Oil

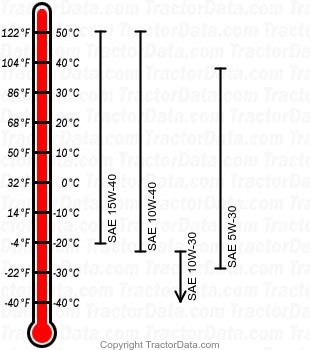

1025R diesel engine oil chart
Oil capacity2.9 qts
2.7 L
Oil change200 h
John Deere 1025R Engine

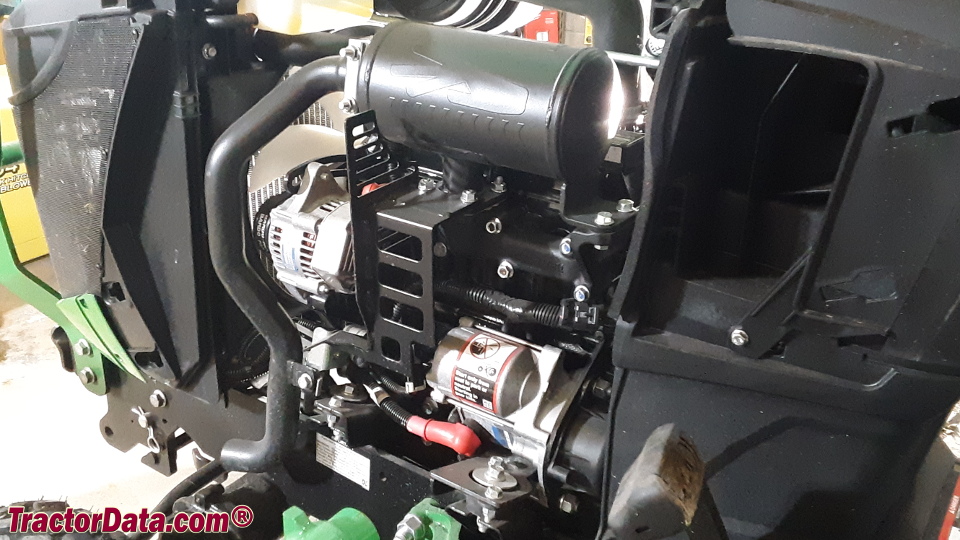

John Deere 1025R engine image
