Tractors > John Deere > 4720

John Deere 4720



John Deere 4720 tractor photo
2005 - 2014
Model year
4000 Twenty Compact Series
Compact Utility tractor
Series map:
4520
4720
60.0hp
66.0hp
Production
ManufacturerJohn Deere
Compact Utility tractor
Built in Augusta, Georgia, USA
Original price$35,633 (2013)
For the 2009 model year (tractor serial number 650001), the John Deere 4720 was upgraded with the eThrottle feature, increased engine power, and an optional 540e PTO. During Nebraska testing, the John Deere 4720 was unable to produce the advertised 12 GPM hydraulic flow rate, actual flow was 11.6 GPM.
John Deere 4720 Engine
John Deere 2.4L 4-cyl diesel
Engine details ...
John Deere 4720 Transmission
hydrostatic
Transmission details ...
John Deere 4720 Power
Engine (gross)66 hp
49.2 kW
PTO (claimed)56 hp
41.8 kW
PTO (tested)59.16 hp
44.1 kW
Performance test details ...
Mechanical
Four-wheel drive
Steeringhydrostatic power
Wet disc brakes
Two-post foldable ROPS. Cab optional with heat and air-conditioning.
Photos

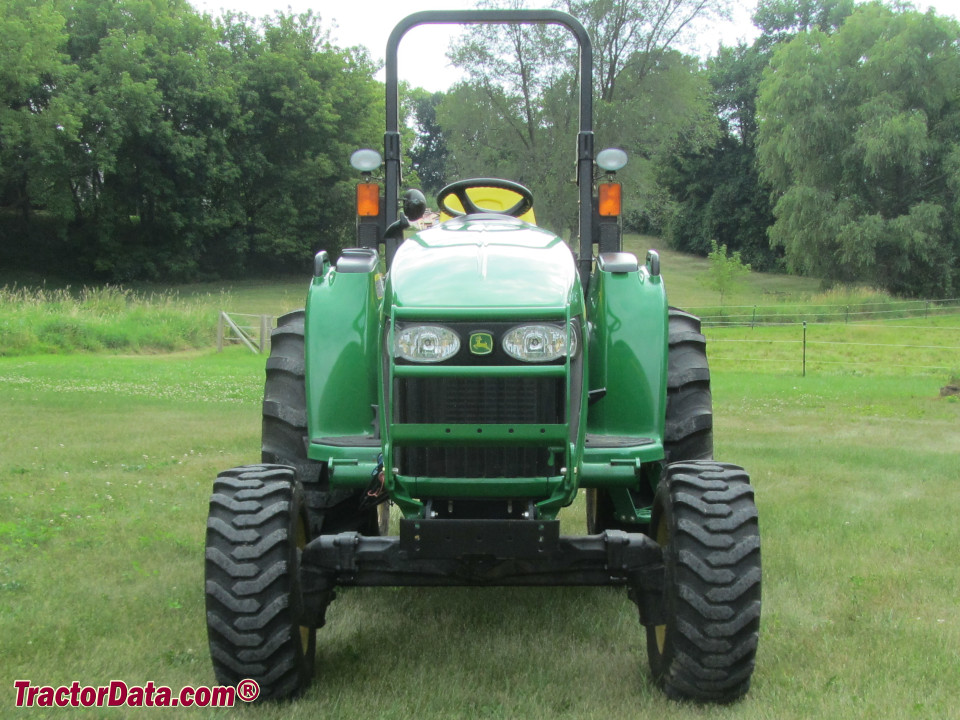

John Deere 4720
John Deere 4720 photos...
Capacity
Fuel14.5 gal
54.9 L
 13.8 gal (with cab)
52.2 L
Hydraulic system9.6 gal
36.3 L
Hydraulics
Typeopen center
Capacity9.6 gal
36.3 L
Pressure2500 psi
172.4 bar
Pump flow12 gpm
45.4 lpm
Total flow17.1 gpm
64.7 lpm
Steering flow5.1 gpm
19.3 lpm
Tractor hitch
Rear TypeI
Rear lift (at 24"/610mm)2500 lbs
1134 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
 540/540e
Mid PTOoptional independent
Mid PTO Type2100
Dimensions & Tires
Wheelbase71.5 inches
181 cm
Weight3,860 lbs
1750 kg
Front tire8.00-16
Rear tire13.6-28
Full dimensions and tires ...
John Deere 4720 attachments
72" mid-mount mower deck
front-end loader
backhoe
Attachment details ...
4720 Serial Number Location
John Deere 4720 serial number location
Right side of tractor frame, above front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps70
Battery CCA770
Battery volts12
References
4720 references literature
4000 Series Compact Utility Tractors published in 2009, by John Deere
4000 Series Compact Utility Tractors published in 2011, by John Deere
TWENTY Series Tractors published in 2010, by John Deere
