John Deere 4720 Transmission


John Deere 4720 tractor photo
2005 - 2014
Model year
4000 Twenty Compact Series
Compact Utility tractor
Series map:
4520
4720
60.0hp
66.0hp
Transmission
TransmissioneHydro
Typehydrostatic
Gearsinfinite forward and reverse (3-range)
Oil capacity38.4 qts
36.3 L
Oil type
0oF [-17oC] : Deere HY-GARD
100oF [37oC] : Low-visc HY-GARD
JDM J20C
J20D
The eHydro uses a three-position range lever and two foot pedals, one for forward and one for reverse. The foot pedals must be released, and tractor stopped, to change range. The eThrottle feature allows the tractor to automatically manage engine speed to increase throttle to match higher speeds. Push-button cruise control.

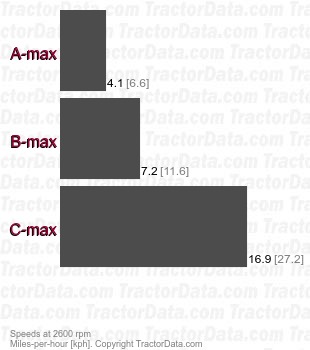

Speeds
With 16.3-28 rear tires.
4720 eHydro hydrostatic speeds
4720 Transmission Controls
John Deere 4720 transmission controls
1Brakes
2Range shift
3Throttle
4Forward/Reverse
5Cruise Control
